1300mm Stainless Steel Coil-to-Coil Polishing Line
Product Overview
The GLORY MACHINERY 1300mm stainless steel coil polishing line is designed for coil-to-coil continuous processing of 200, 300, and 400 series stainless steel. The line combines coil handling, strip alignment, surface finishing, cleaning, drying, and recoiling in one coordinated production process. Its oil-wet polishing system can be configured for No.4, brushing, or hairline finishing according to the required surface sample. CPC alignment supports stable strip feeding at the entry, while EPC control helps maintain an orderly coil edge during recoiling. After polishing, the strip passes through the integrated cleaning and drying section before protective film can be applied. This coil-to-coil polishing line is suitable for stainless steel service centers and manufacturers producing decorative or industrial coil surfaces. The final machine layout, polishing-head arrangement, electrical standard, and process configuration can be customized according to project requirements.
Key Features
- Continuous coil-to-coil production.

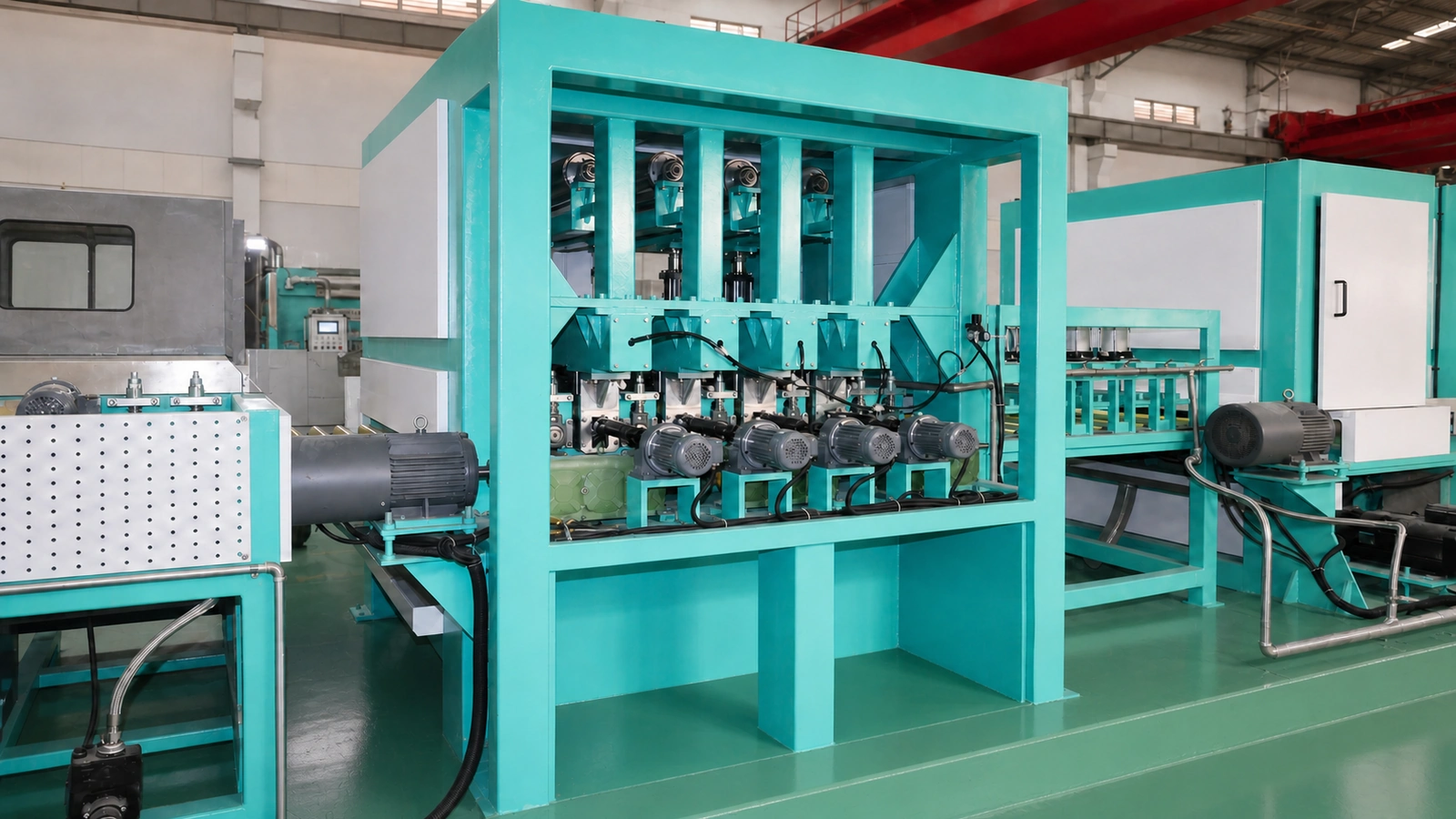

- Oil-wet stainless steel polishing process.

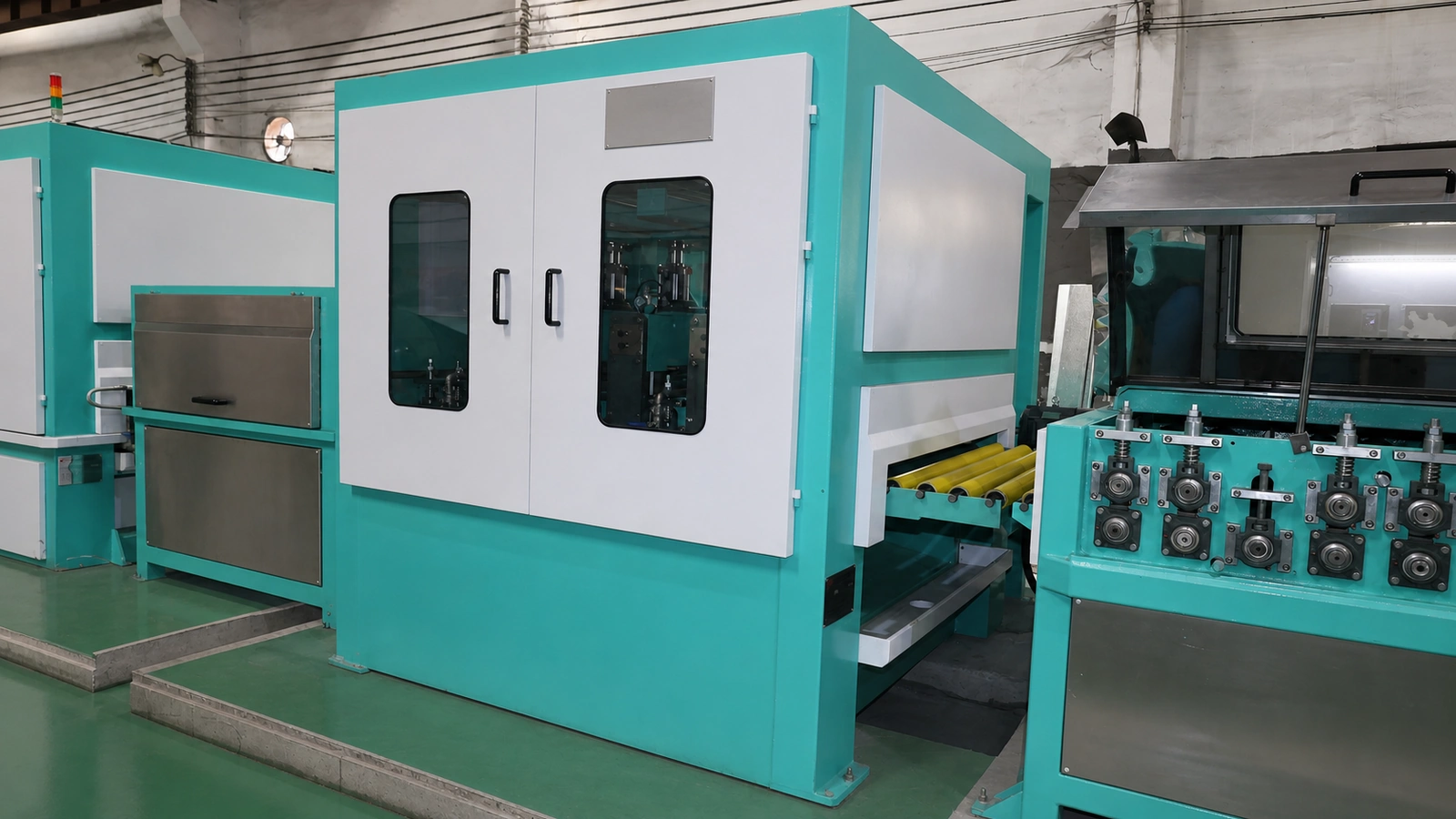

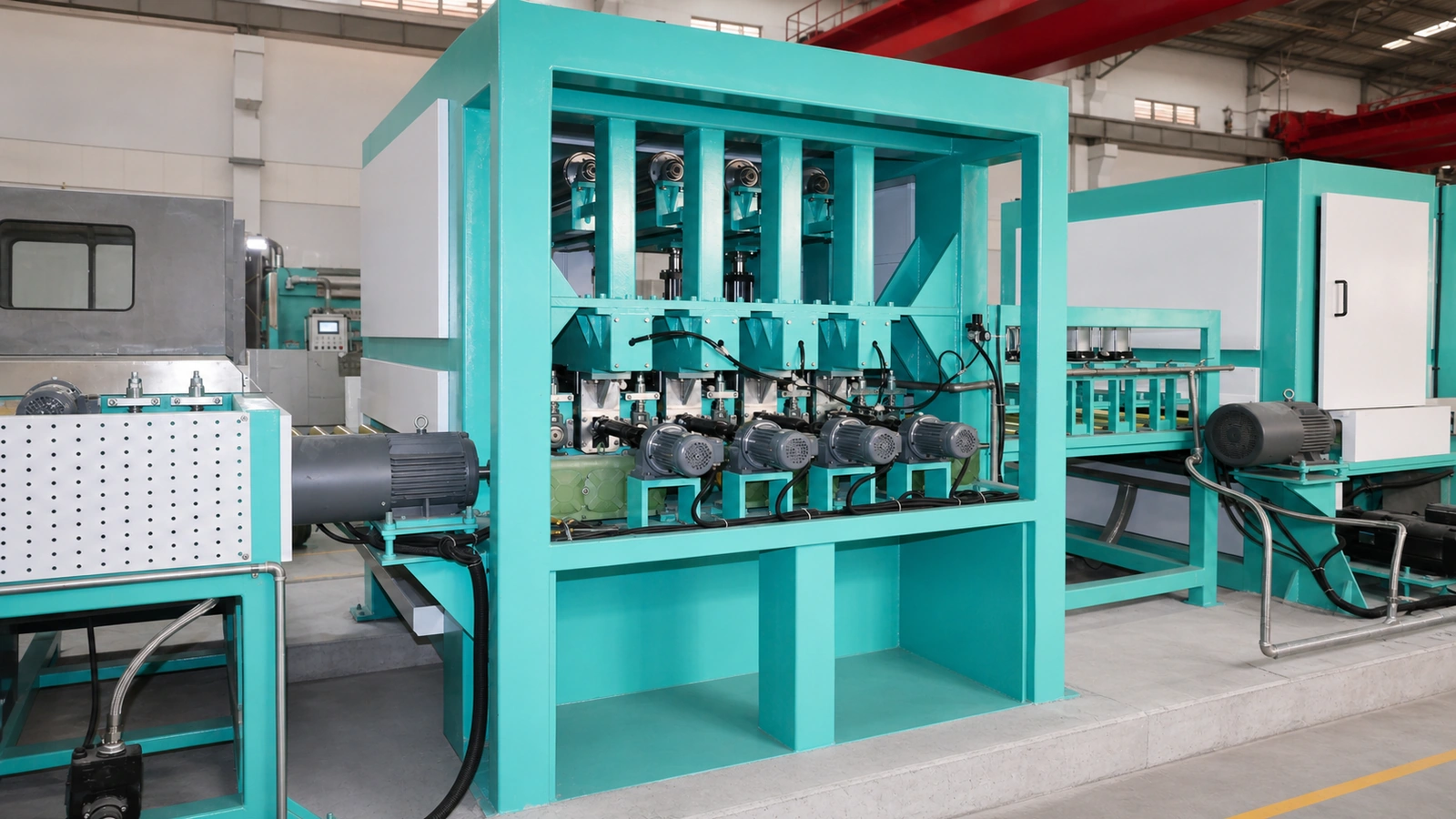

- No.4, brushing, and hairline finishing options.
- CPC entry alignment for stable strip feeding.

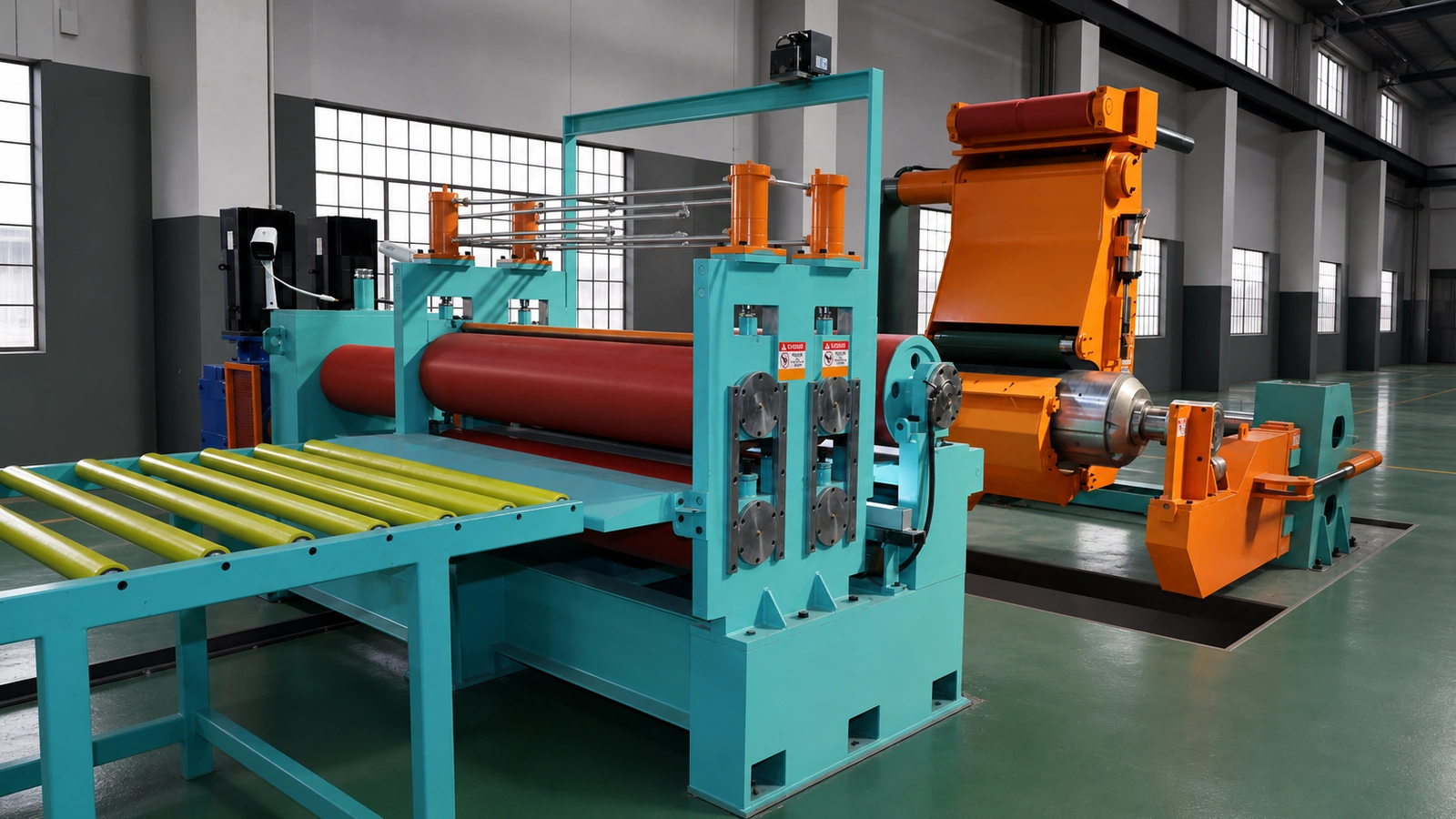

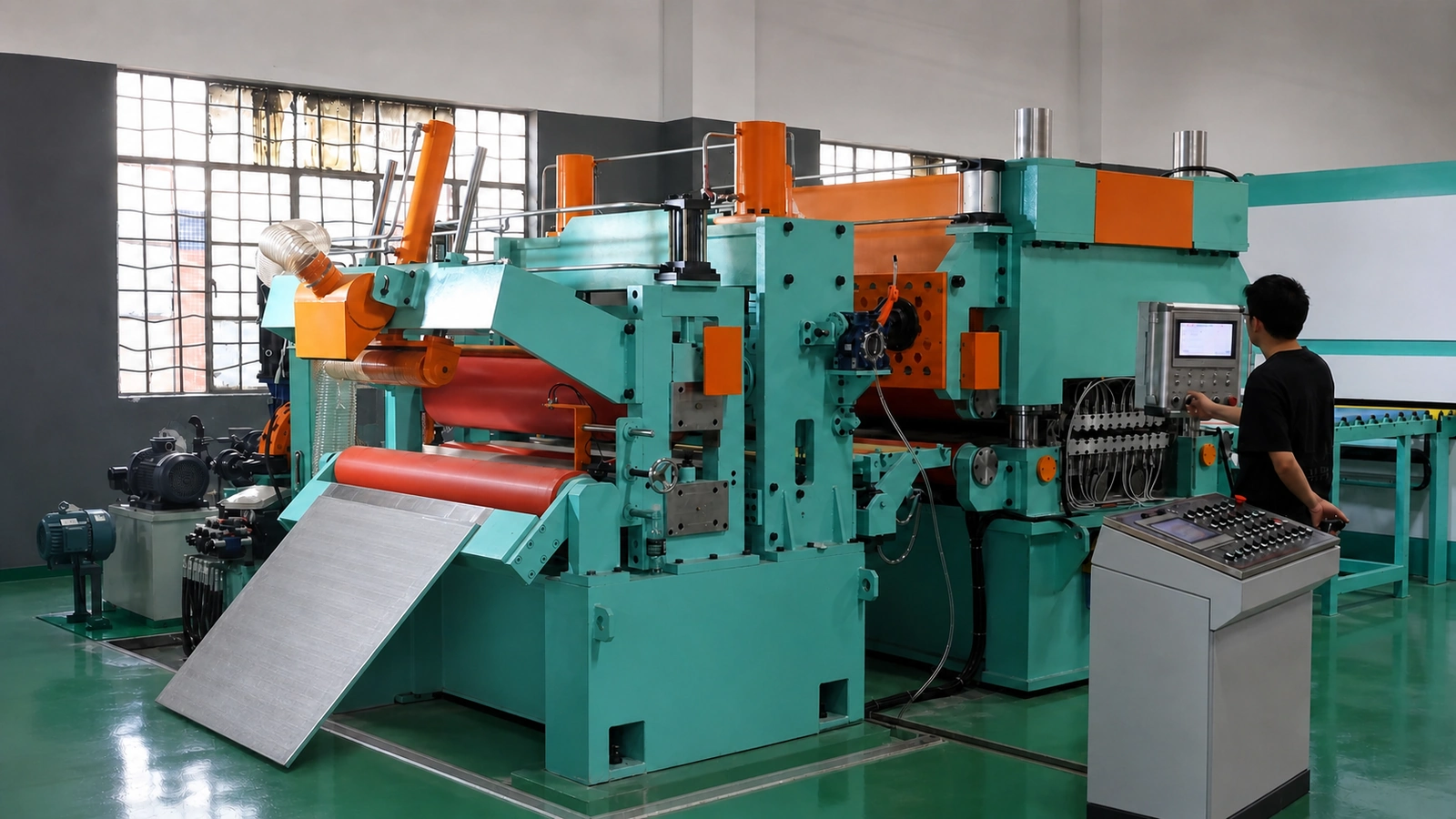

- Integrated feeding and leveling unit.

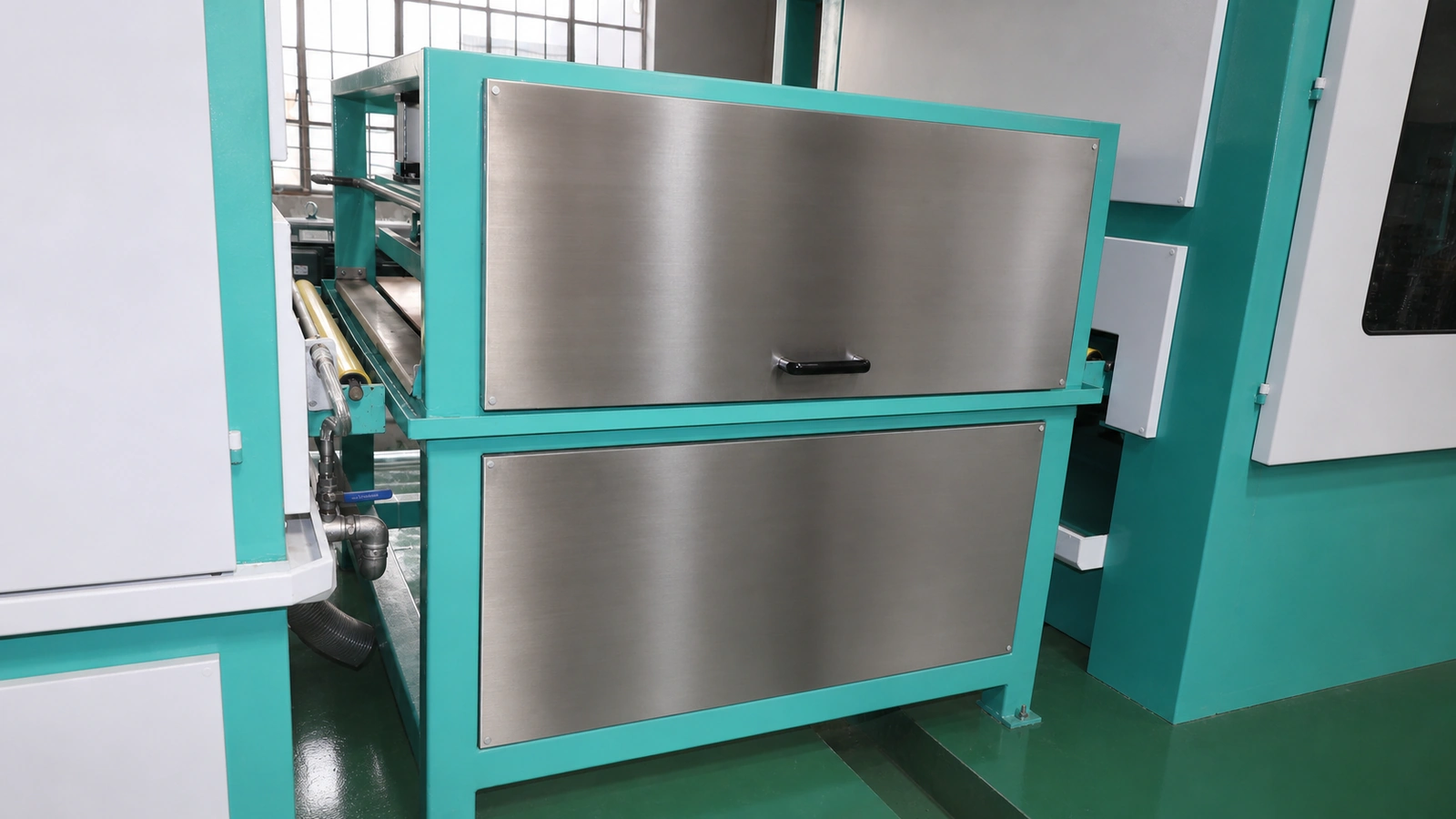

- Cleaning and drying after surface finishing.
- Protective-film lamination before recoiling.
- EPC control for accurate recoiling.
- Central PLC and HMI operation.
Technical Specifications
| Parameter | Specification |
|---|---|
| Material | 200 / 300 / 400 series stainless steel coil |
| Thickness | 0.5-1.0 mm |
| Width | 300-1,250 mm |
| Coil OD | Up to 1,600 mm |
| Coil ID | 480-520 mm; sleeve options available |
| Finish | No.4 / brushing / hairline |
| Process Type | Oil-wet coil-to-coil continuous processing |
| Control System | PLC + HMI with CPC and EPC control |
| Power Supply | 380 V / 50 Hz / 3 phase; other standards available |
| Customization | Available according to material, finish, and plant layout |
Machine Components
Working Process
Coil loading → decoiling → CPC alignment → feeding → polishing → brushing / hairline finishing → cleaning & drying → film lamination → EPC recoiling → unloading.
Applications
- Stainless steel service centers
- Elevator panel production
- Commercial kitchen equipment
- Architectural decoration
- Home appliance manufacturing
- Metal furniture production
Machine Gallery

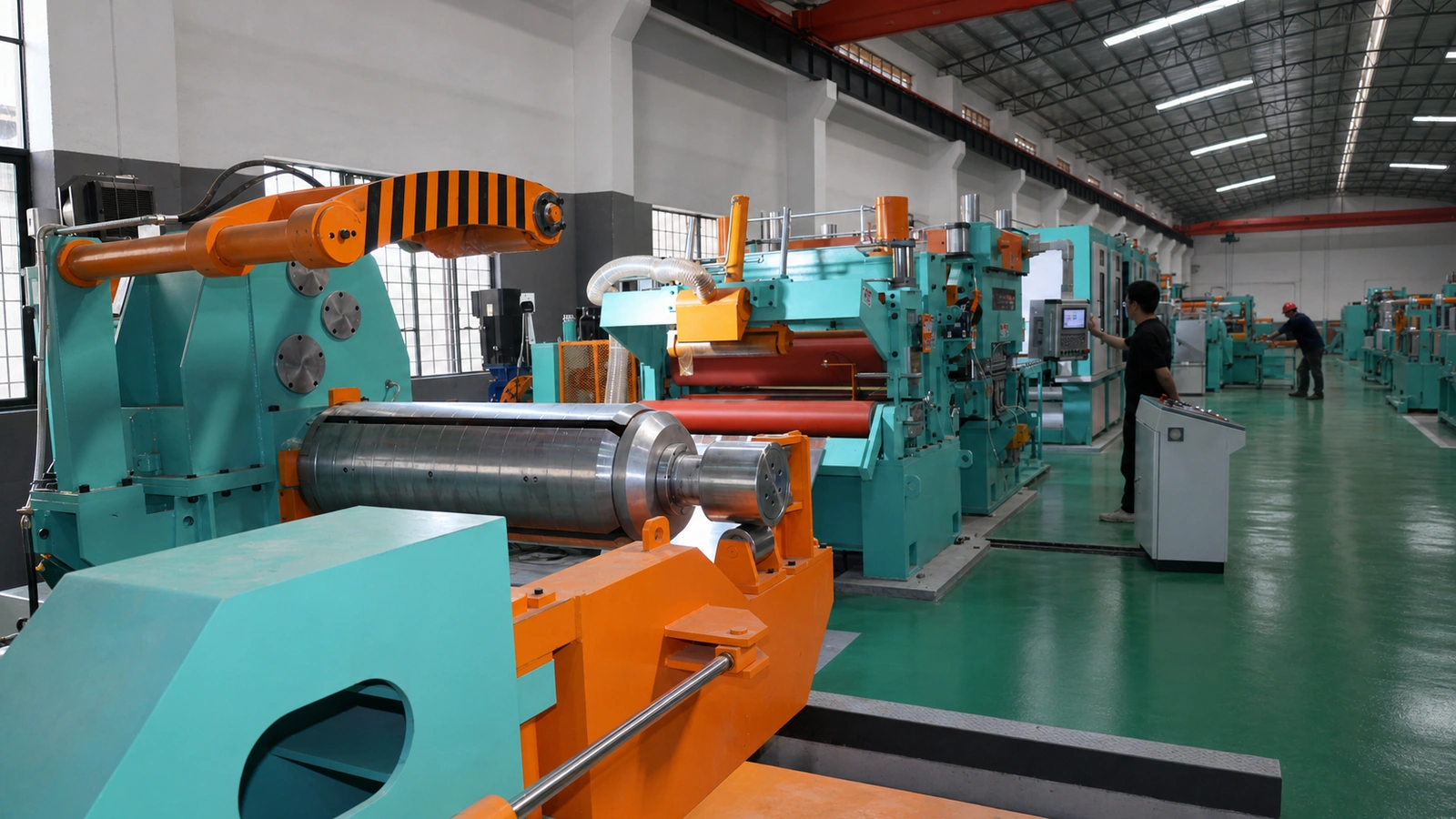

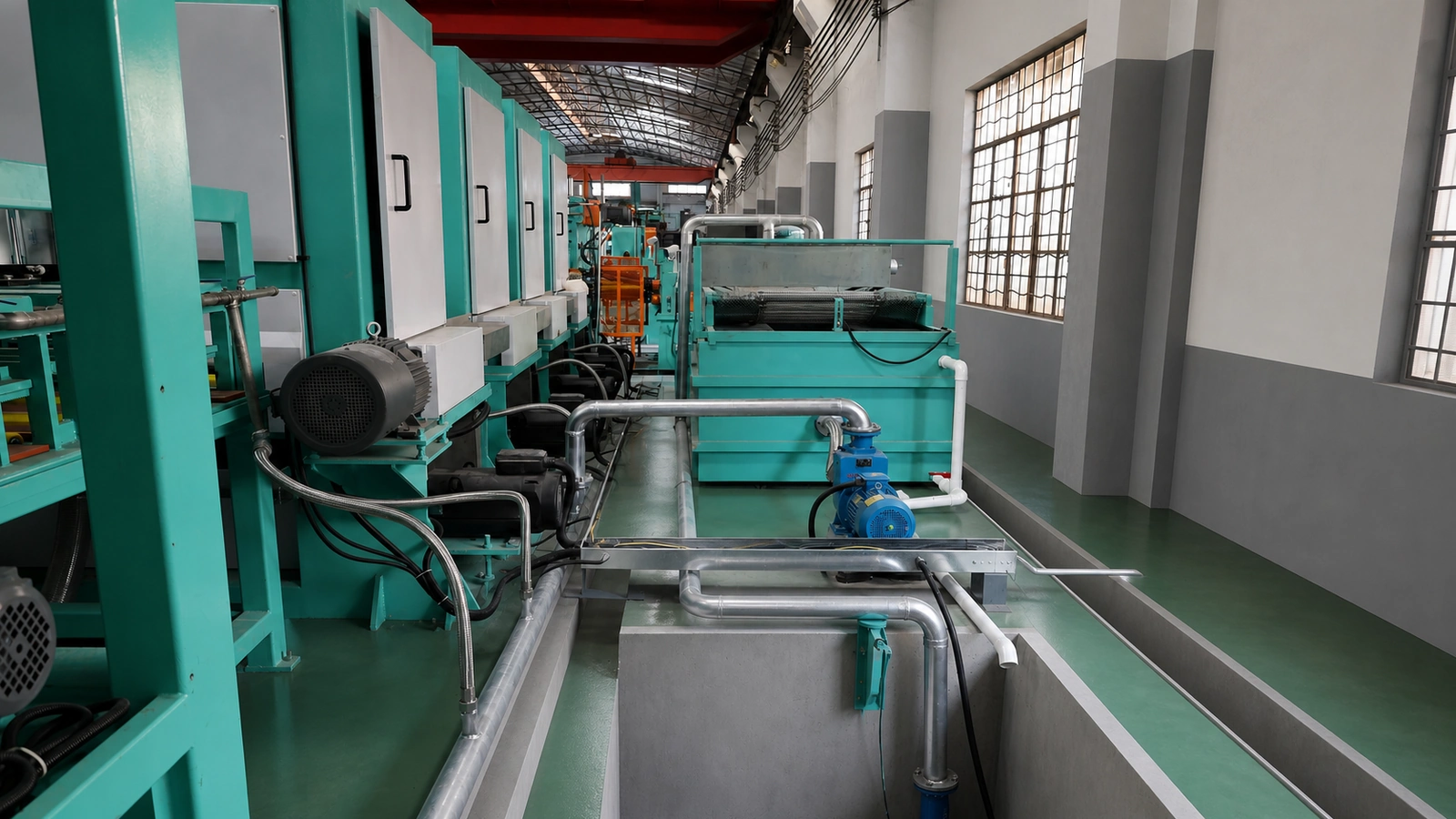

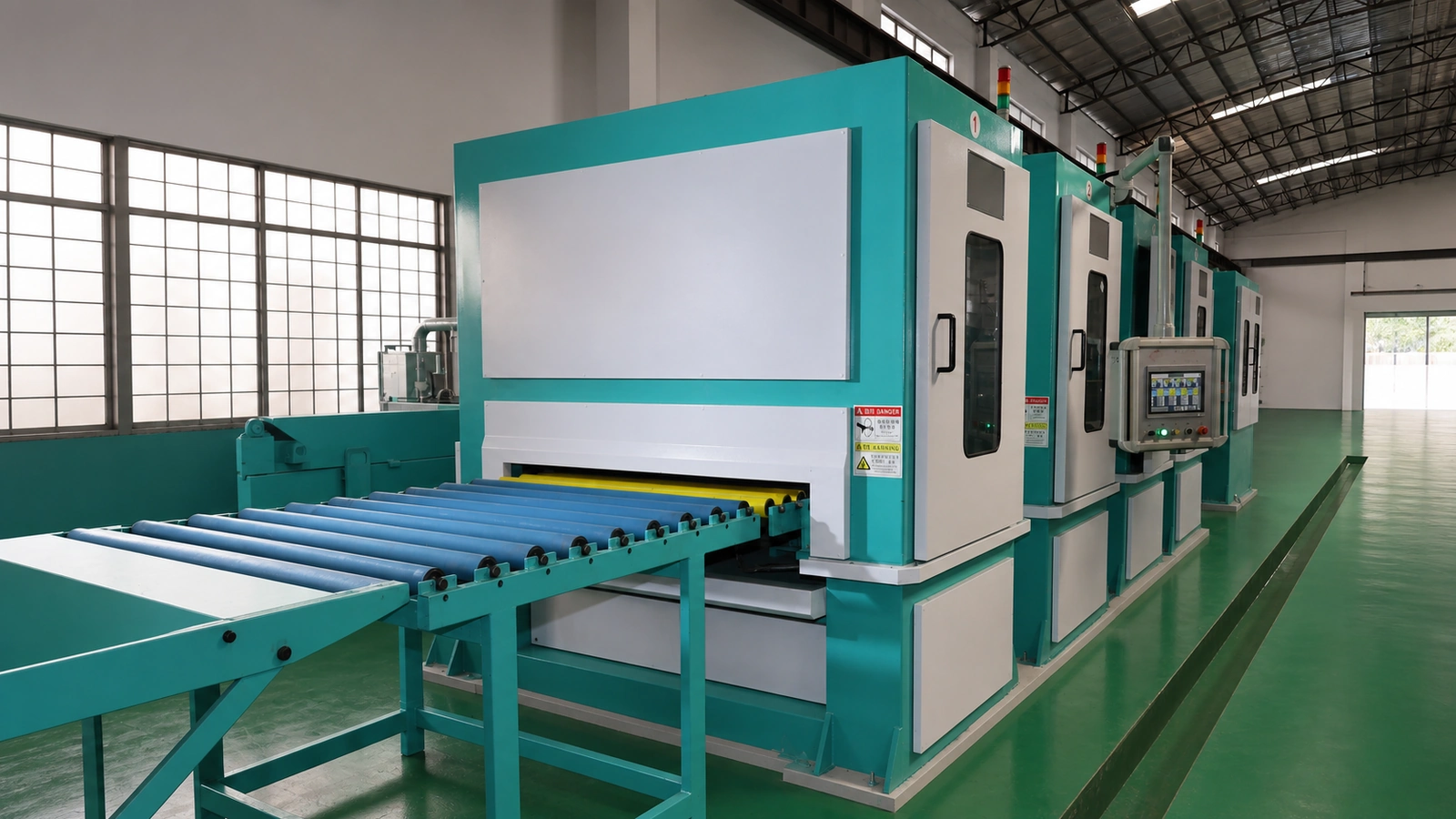

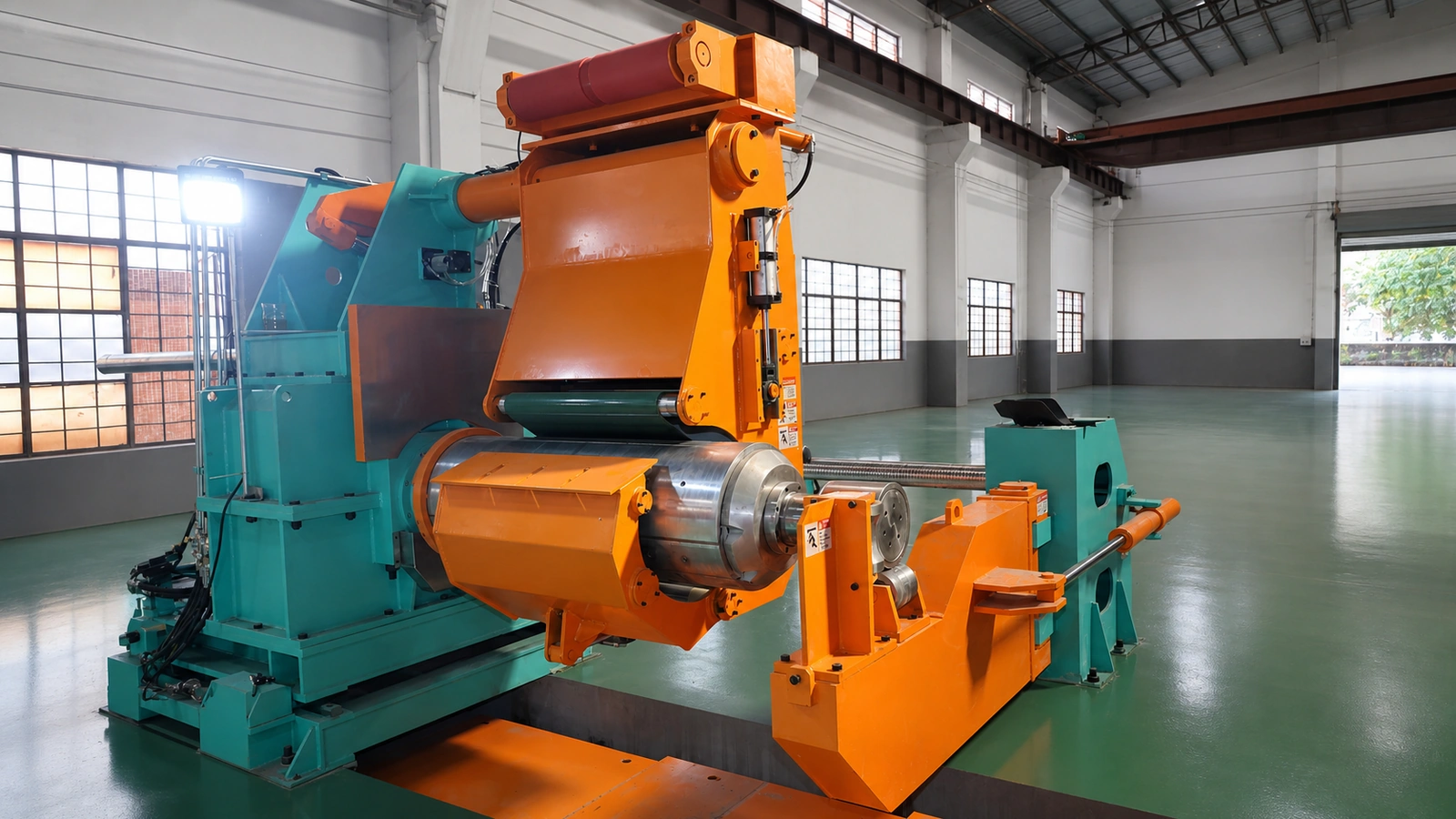

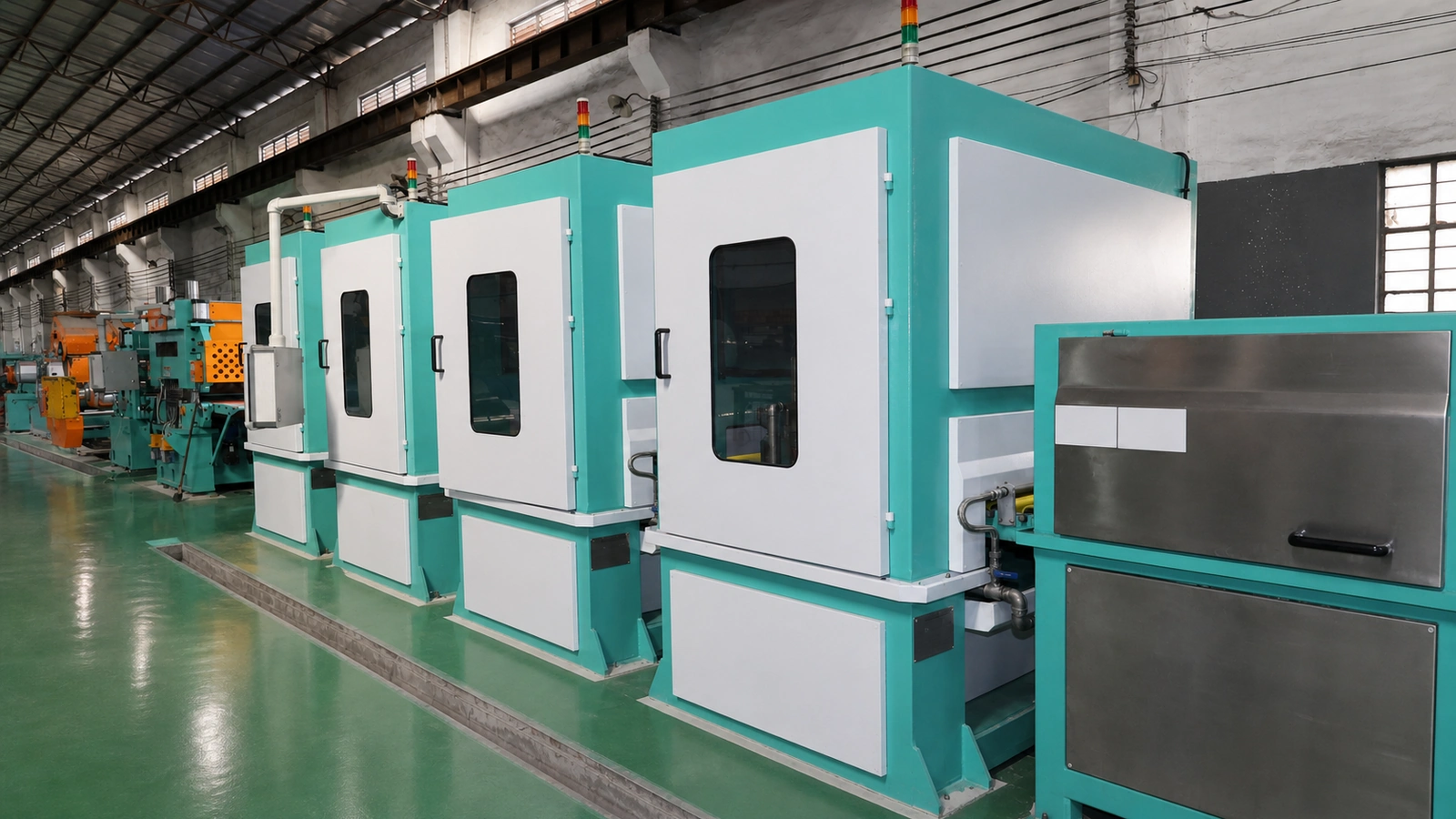

Main equipment and production sections of the 1300mm stainless steel coil polishing line.
Discuss Your Coil Finishing Project
Send GLORY MACHINERY your stainless steel grade, strip width and thickness, coil ID and OD, target finish, and workshop layout. Final configuration can be customized according to project requirements.
