1600 Sheet-to-Sheet No.4 & SB Polishing Line
Product Introduction

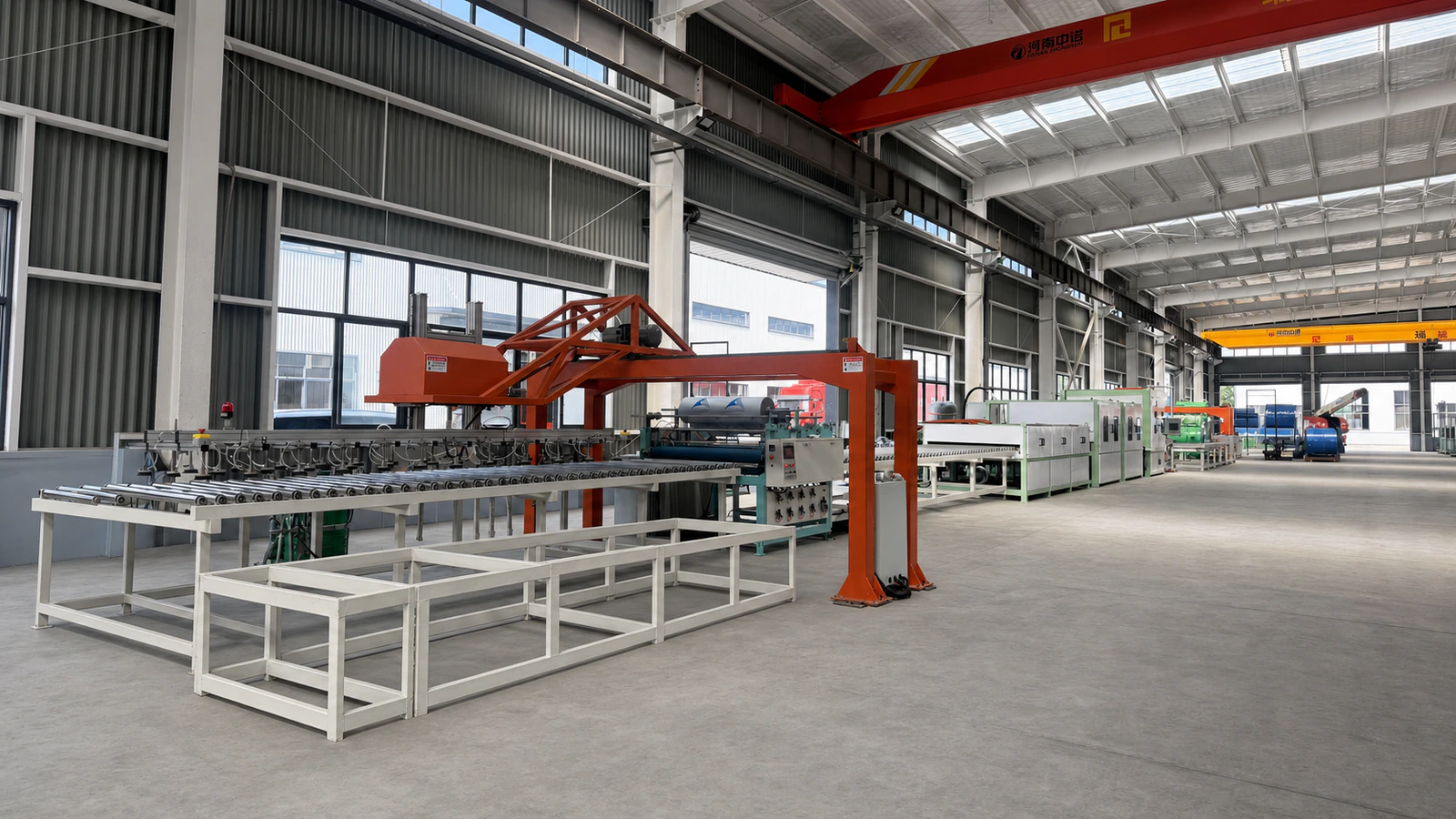

The 1600 oil-wet-type sheet-to-sheet polishing and grinding line integrates automatic sheet handling, edge-burr removal, abrasive-belt polishing, brushing, cleaning, drying and protective-film lamination for stainless steel sheet production.
The documented incoming materials are 430, 439, 445, 304, 316 and 200-series stainless steels with 2B or BA surfaces. The documented finished surfaces are No.4 and Scotch-Brite (SB).
Advantages
Integrated Processing

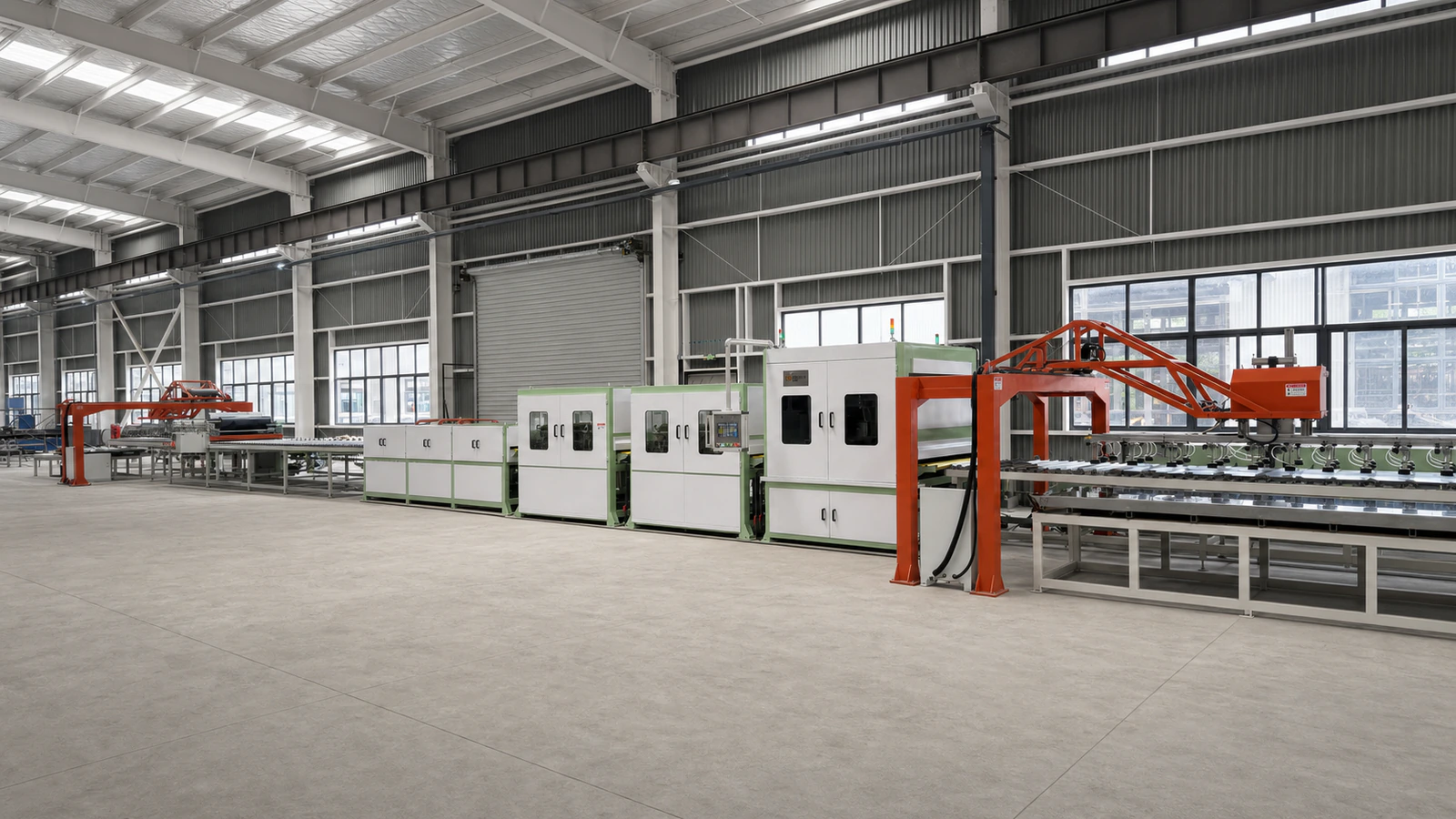

One line connects sheet loading, edge treatment, polishing, brushing, cleaning, drying, film lamination and unloading.
Automatic Handling
Servo-driven suction loading and unloading support controlled sheet transfer through the production process.
Process Control
PLC, touchscreen, sensors and frequency-controlled drives support manual and automatic operating modes.
Technical Features
- Oil-wet-type sheet-to-sheet polishing and grinding process
- Automatic suction loading and unloading
- Edge-burr removal by angle grinding
- Double No.4 abrasive-belt polishing section
- Brushing section for the documented SB finish
- Integrated spray cleaning, drying and protective-film lamination
- Pneumatic abrasive-belt tensioning and correction
- Safety interlocks, alarms, light curtain and infrared detection described in the source configuration
Technical Specifications
| Machine type | 1600 oil-wet-type sheet-to-sheet polishing and grinding line |
|---|---|
| Documented sheet width | 300–1550 mm |
| Maximum sheet size | W1550 × L4000 mm |
| Raw-material thickness | 0.4–3.0 mm |
| Documented line speed | 20 m/min, stepless regulation; guaranteed output requires project confirmation |
| Abrasive belt | 2620 × 1580 mm; dimensional convention requires confirmation |
| Abrasive grit | 120#–240# |
| Installed power | Approximately 245 kW; final connected load requires confirmation |
| Power supply | 3-phase, 380 VAC ±10%, 50 Hz ±1% （customized by customer) |
| Compressed air | 0.7 MPa, 1 m³/min; supplied by customer |
| Documented finishes | No.4 and Scotch-Brite (SB) |
Engineering note: Final configuration, production capacity, utility requirements and workshop layout must be confirmed against the approved technical agreement for each project.
Machine Configuration

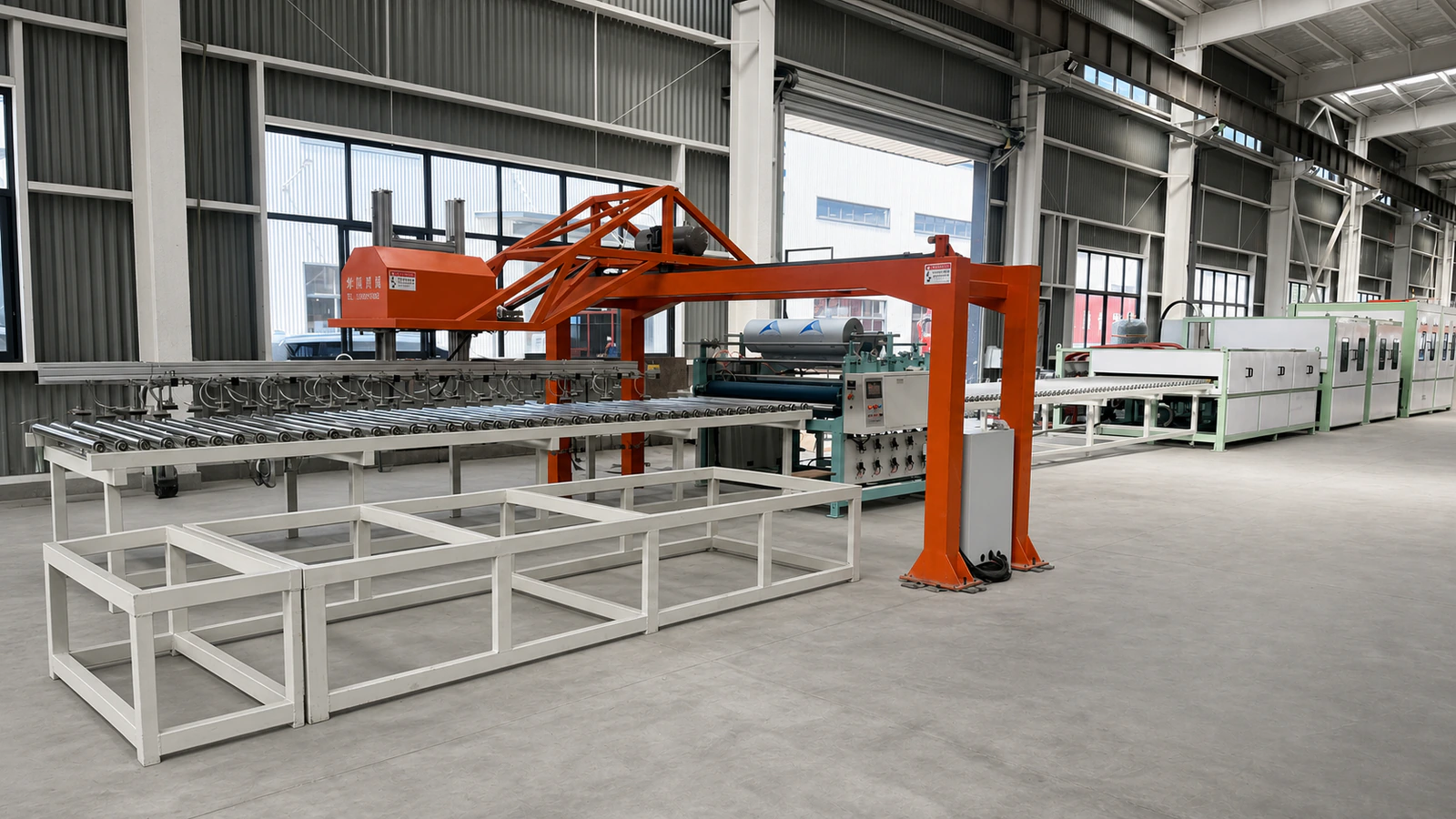

Sheet Handling
- 5 m conveyor roller table

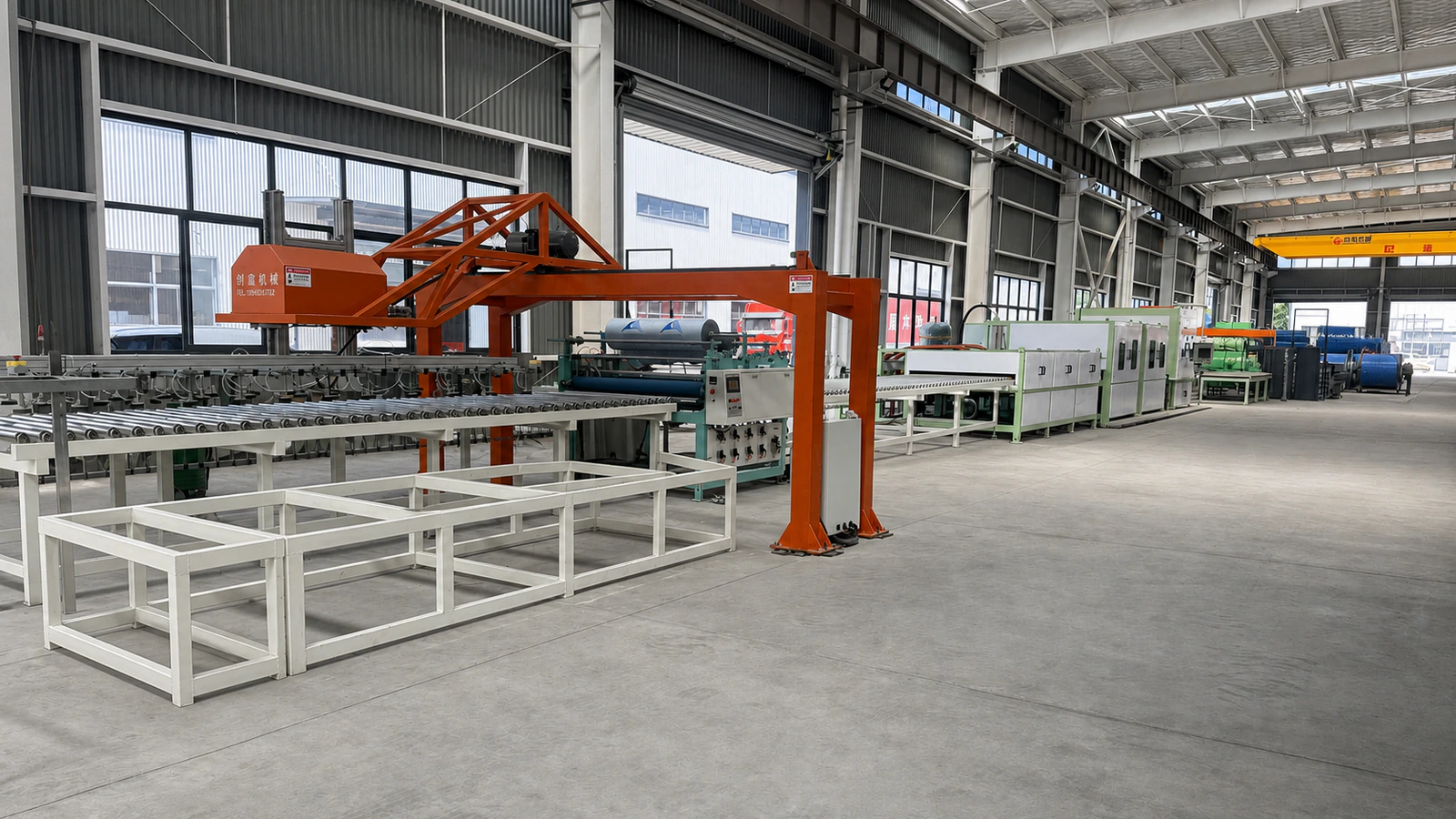

- Automatic suction loading
- Automatic suction unloading

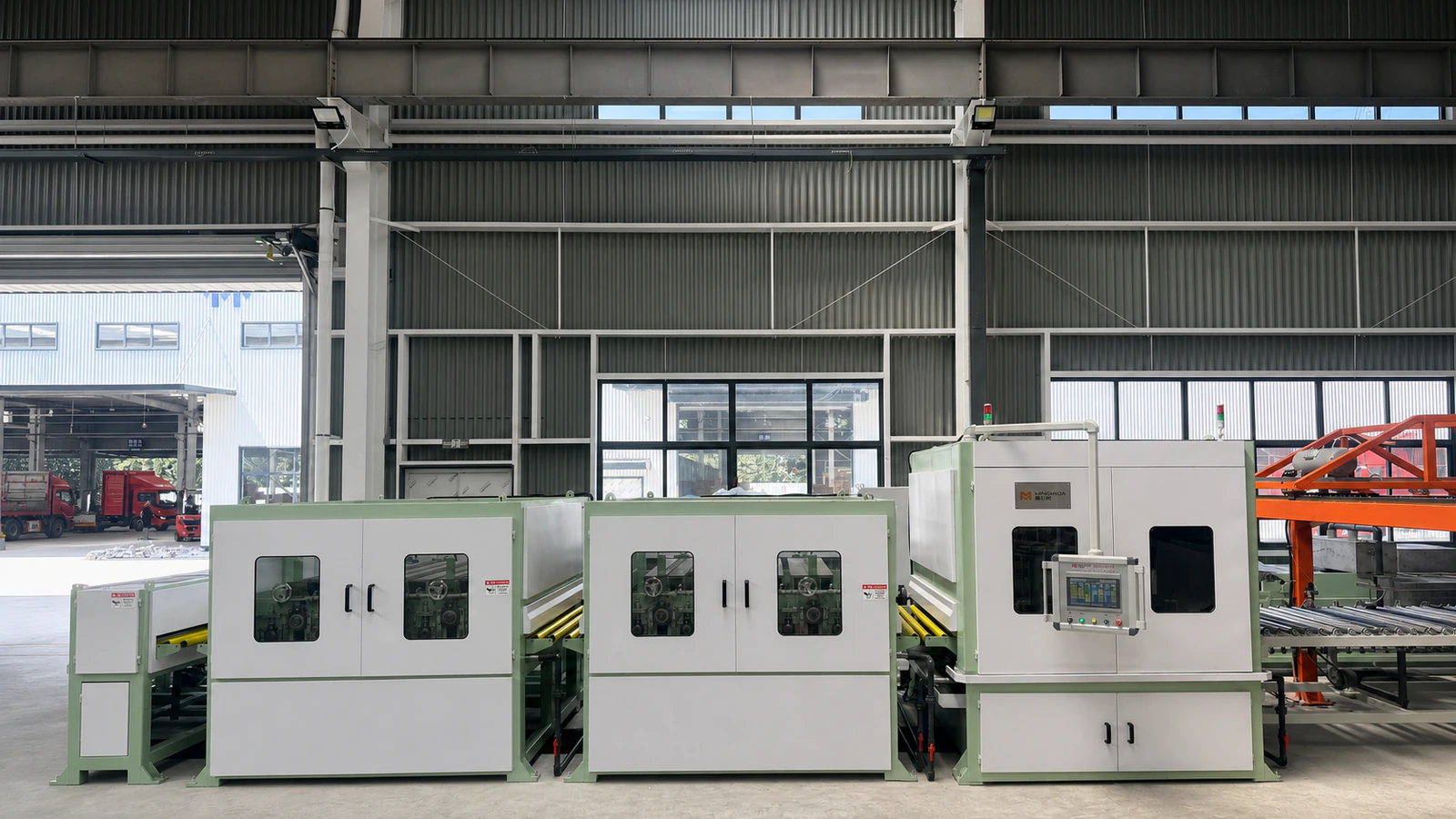

Surface Processing
- Edge-trimming burr machine

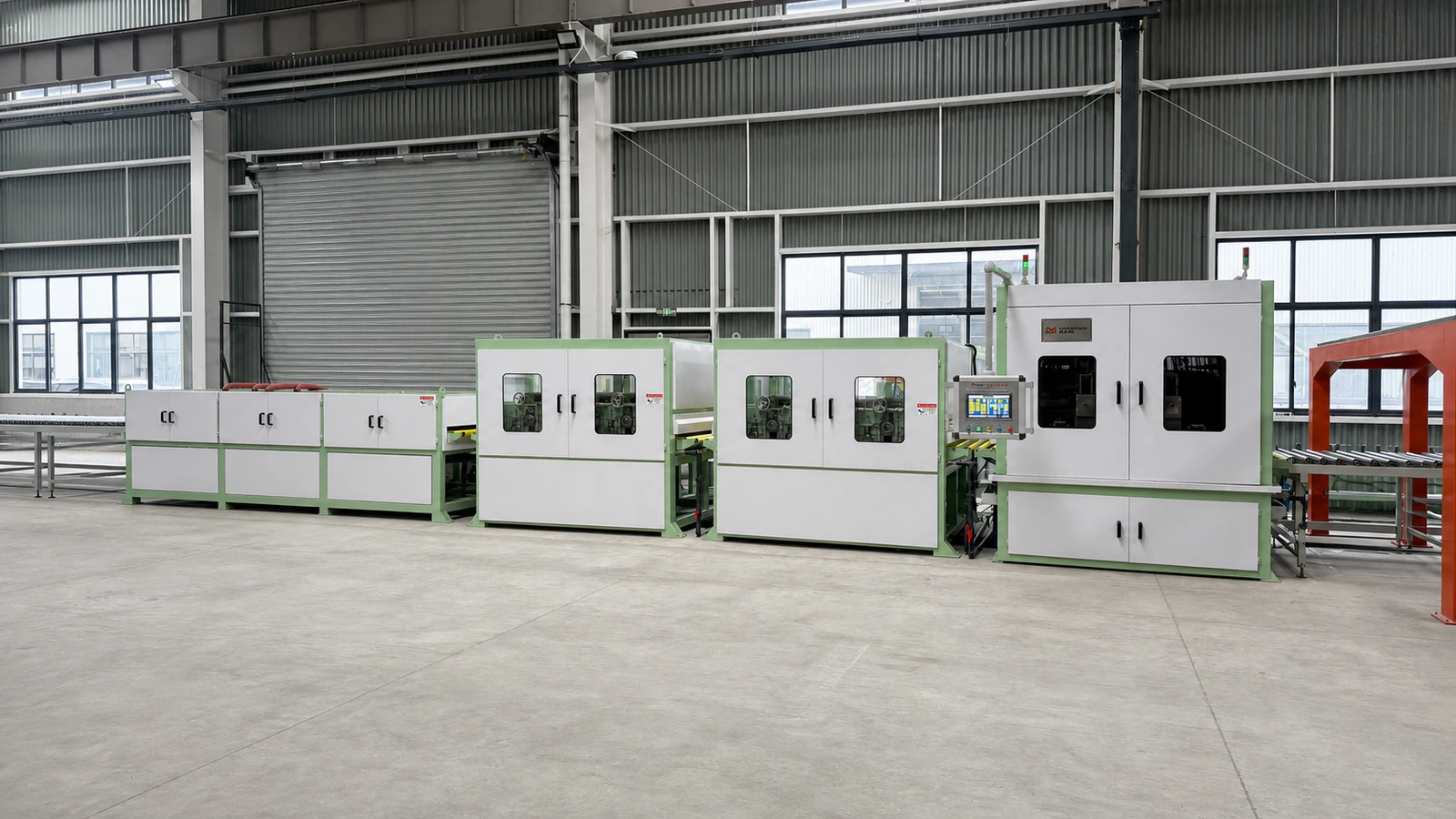

- Double No.4 polishing heads
- Brushing-machine sets
Finishing & Control
- Cleaning and drying unit
- Automatic film laminator
- Filtration, hydraulic, pneumatic and electrical systems
Finished Surface Gallery
Application Industries
The documented application is sheet-to-sheet processing of stainless steel decorative sheets with 2B or BA incoming surfaces. Project-specific validation is recommended for elevator panels, architectural panels, kitchen-equipment sheets, home-appliance panels and metal-furniture panels.
Documented processing range: 430, 439, 445, 304, 316 and 200-series stainless steel; 300–1550 mm sheet width; maximum W1550 × L4000 mm sheet size; No.4 or SB finish.
Customer Photos
Loading Photos
FAQ
What type of machine is this?
It is a 1600 oil-wet-type, sheet-to-sheet polishing and grinding line for stainless steel No.4 and SB surface processing.
Which materials are documented?
The source lists 430, 439, 445, 304, 316 and 200-series stainless steel with 2B or BA incoming surfaces.
What sheet sizes can be processed?
The documented width is 300–1550 mm, with a maximum sheet size of W1550 × L4000 mm.
What is the documented thickness range?
The raw-material table states 0.4–3.0 mm. The final minimum thickness should be confirmed through technical review and sample testing.
Does the line include automatic handling?
Yes. The source describes automatic suction loading and unloading with servo drives, vacuum suction, PLC control and touchscreen operation.
Is protective-film lamination included?
An automatic laminating machine is listed in the equipment configuration.
What utilities are required?
The documented electrical supply is 3-phase 380 VAC ±10% at 50 Hz ±1%. Compressed air is stated as 0.7 MPa at 1 m³/min. Cooling-water details require project confirmation.
