750 Type Titanium Coil-to-Coil Polishing Line
Product Overview

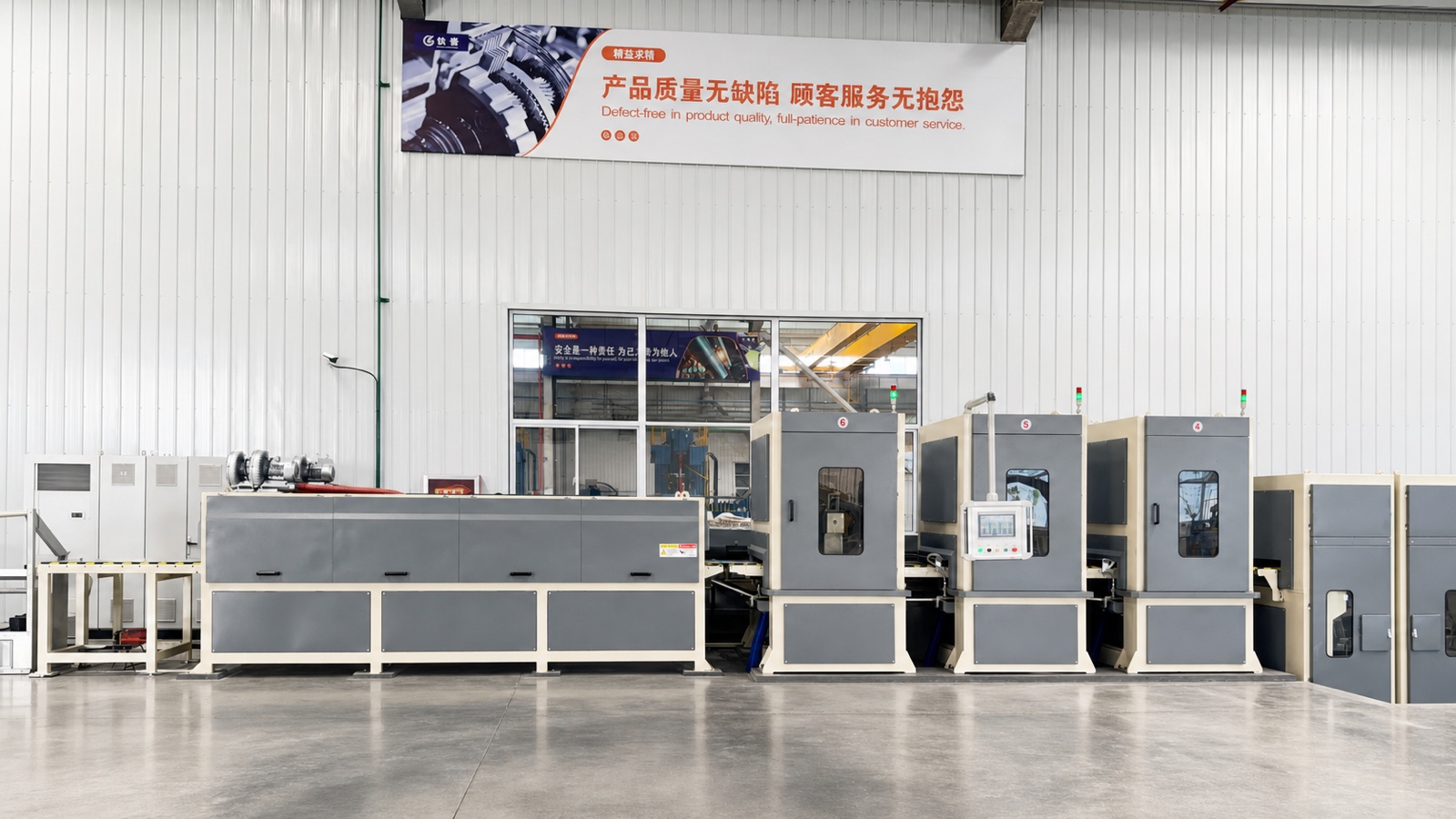

The GLORY MACHINERY 750mm Titanium Coil-to-Coil Polishing Line is a continuous surface finishing system designed for industrial titanium coil processing, especially TA1, TC4, and nickel-based materials.
The machine is engineered for stable No.4 surface finishing quality, providing consistent polishing results on titanium strip materials with widths from 300–750 mm and thickness range of 0.05–2.0 mm.

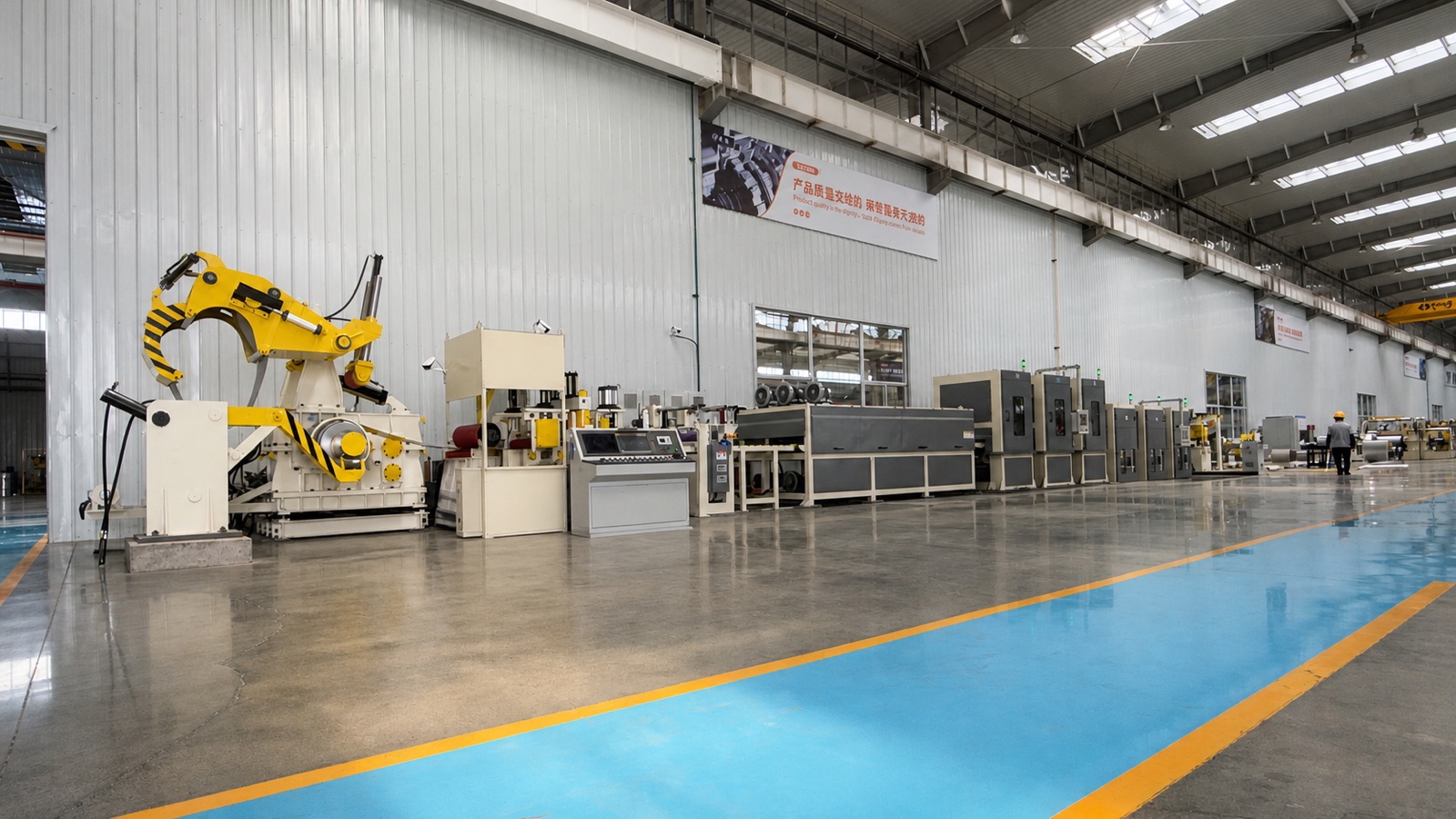

The production line integrates decoiling, strip guiding, polishing, cleaning, drying, protective film coating, and recoiling into a fully continuous coil-to-coil process controlled by a centralized PLC system.
This system is suitable for manufacturers requiring high-efficiency titanium surface finishing with stable industrial-grade surface consistency.
Key Features
- Continuous coil-to-coil titanium polishing system
- Designed for TA1, TC4 titanium and nickel-based materials
- Stable No.4 surface finishing quality
- Working width range: 300–750 mm
- Thickness range: 0.05–2.0 mm
- Wet abrasive belt polishing technology for heat control and surface stability
- Hydraulic coil loading and unloading system
- CPC entry alignment and EPC recoiling alignment system
- Integrated washing and drying unit after polishing
- Automatic double-side protective film lamination system
- PLC intelligent control system with manual / automatic operation modes
- Fully enclosed safety protection system for industrial operation
Machine Advantages
The titanium coil polishing line integrates multiple processing stages into one continuous production system, reducing manual handling and improving surface consistency.
CPC and EPC alignment systems ensure stable strip positioning during high-speed processing.
The wet polishing system reduces thermal deformation and improves titanium surface uniformity.
Integrated cleaning, drying, and protective film application improve final surface protection and reduce post-processing operations.
Final performance depends on material grade, incoming surface condition, abrasive configuration, and process parameters.
Main Machine Components
| No. | Component | Function / Configuration | Quantity |
|---|---|---|---|
| 1 | Coil preparation table | Supports coil staging before loading | 1 set |
| 2 | Entry hydraulic holding arm | Supports the cantilever end of the decoiler mandrel | 1 set |
| 3 | Loading car | Hydraulic lifting and motorized coil transfer | 1 set |

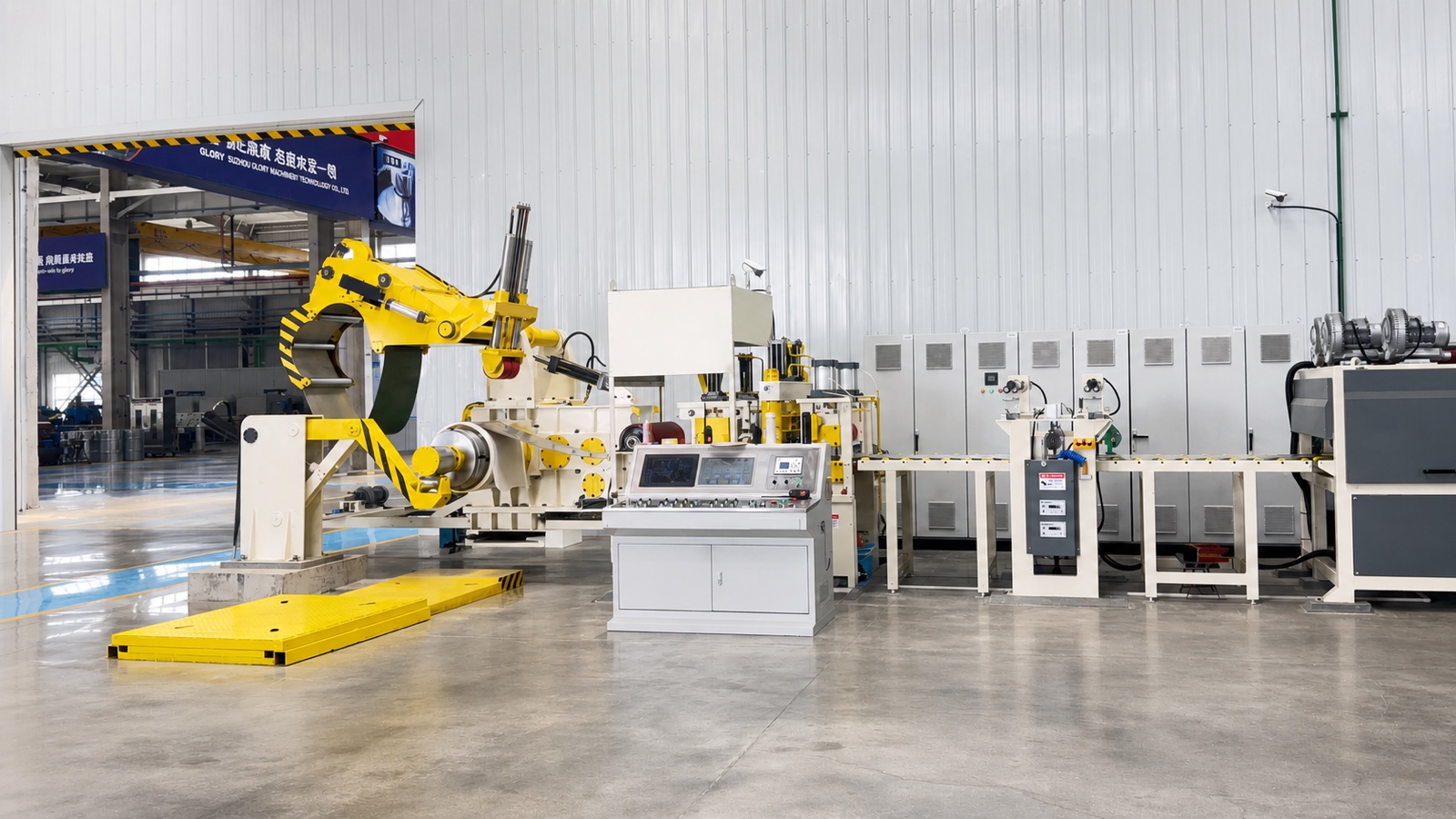

| 4 | Cantilever decoiler with CPC | Hydraulic mandrel expansion and entry alignment | 1 set |
| 5 | Peeler table, pinch rolls, and crop shear | Strip-head feeding, straightening, and cropping | 1 set |

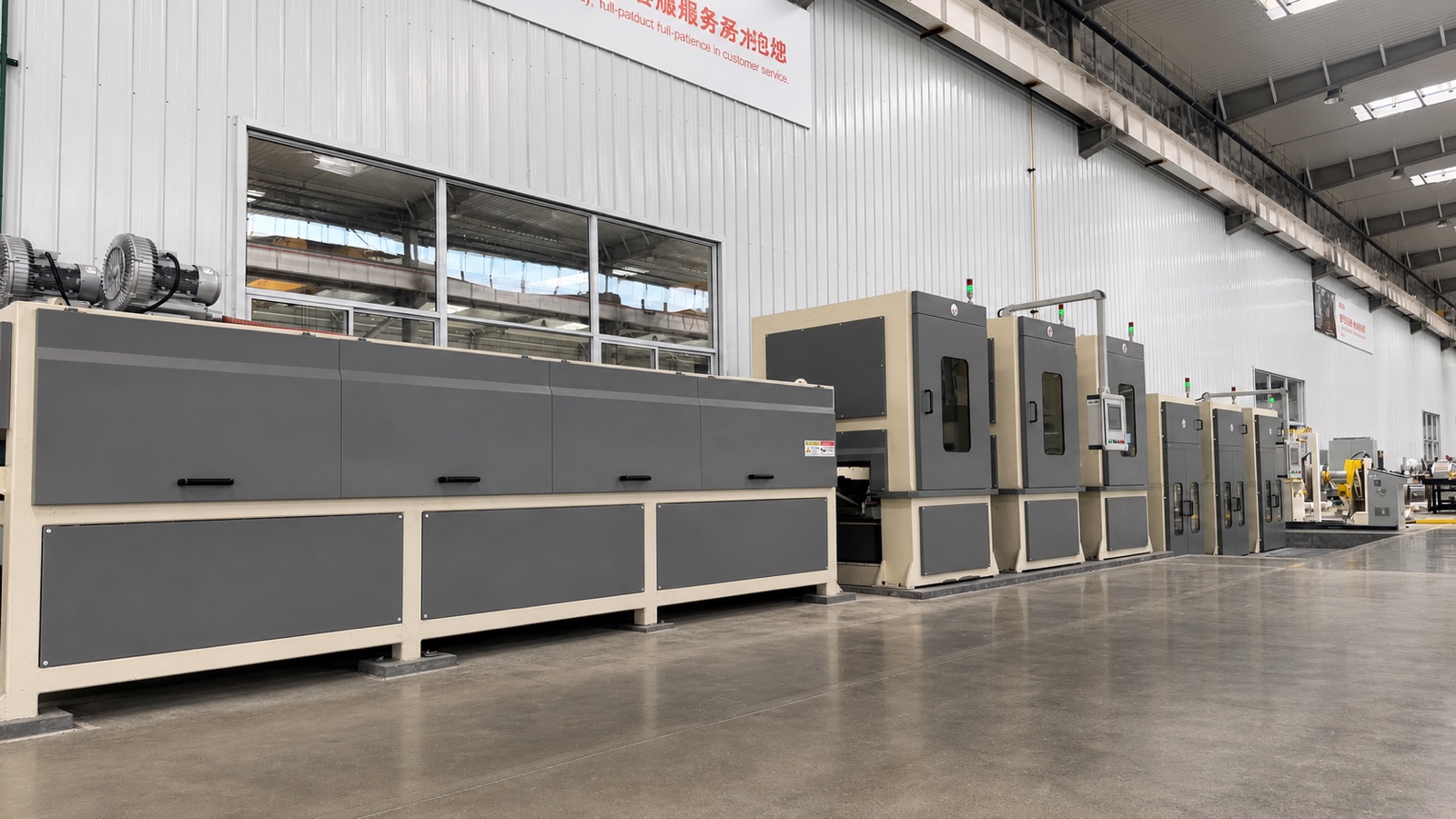

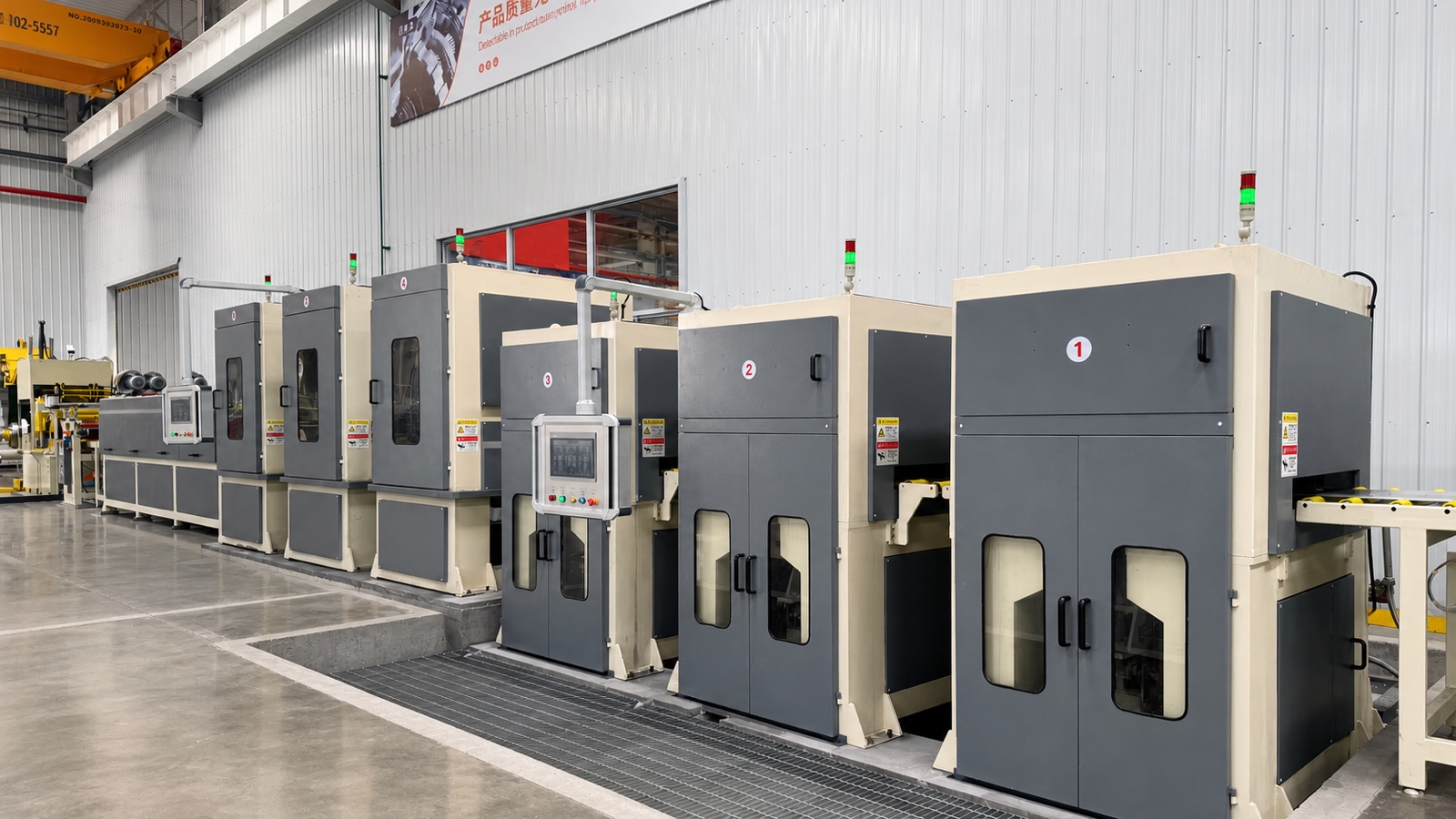

| 6 | Wet abrasive-belt polishing stations | Top- and bottom-side No.4-type polishing arrangement | To Be Confirmed (Verification Required) |
| 7 | Washing and drying unit | Brush washing, spray cleaning, and air drying | 1 set |
| 8 | Automatic film laminator | Applies protective film to both sides and cuts film automatically | 1 set |
| 9 | Paper-belt filtration system | Filters process liquid | 1 set |
| 10 | Exit pinch roll and tension guide section | Controls strip transport and exit tension | 1 set |

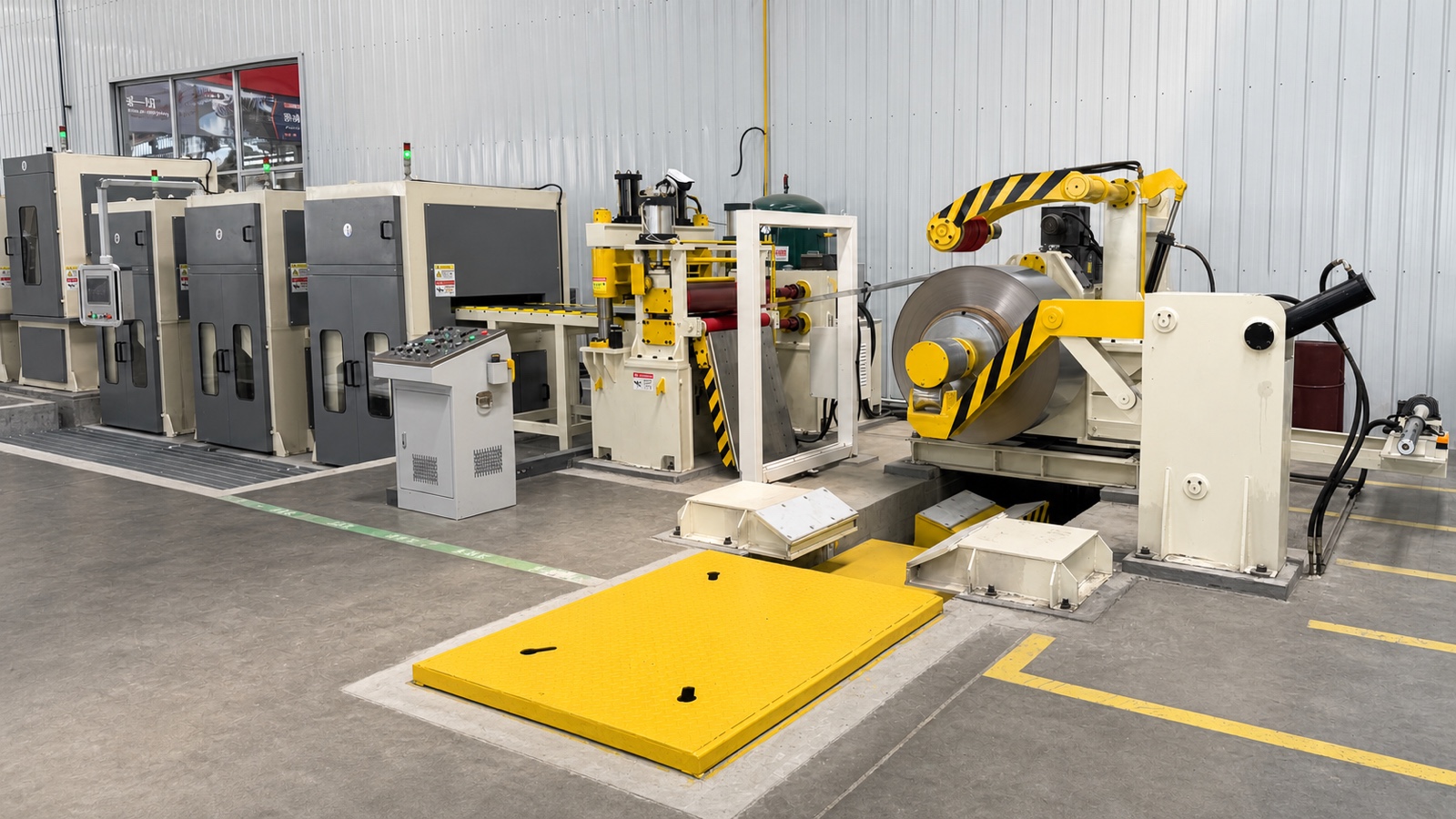

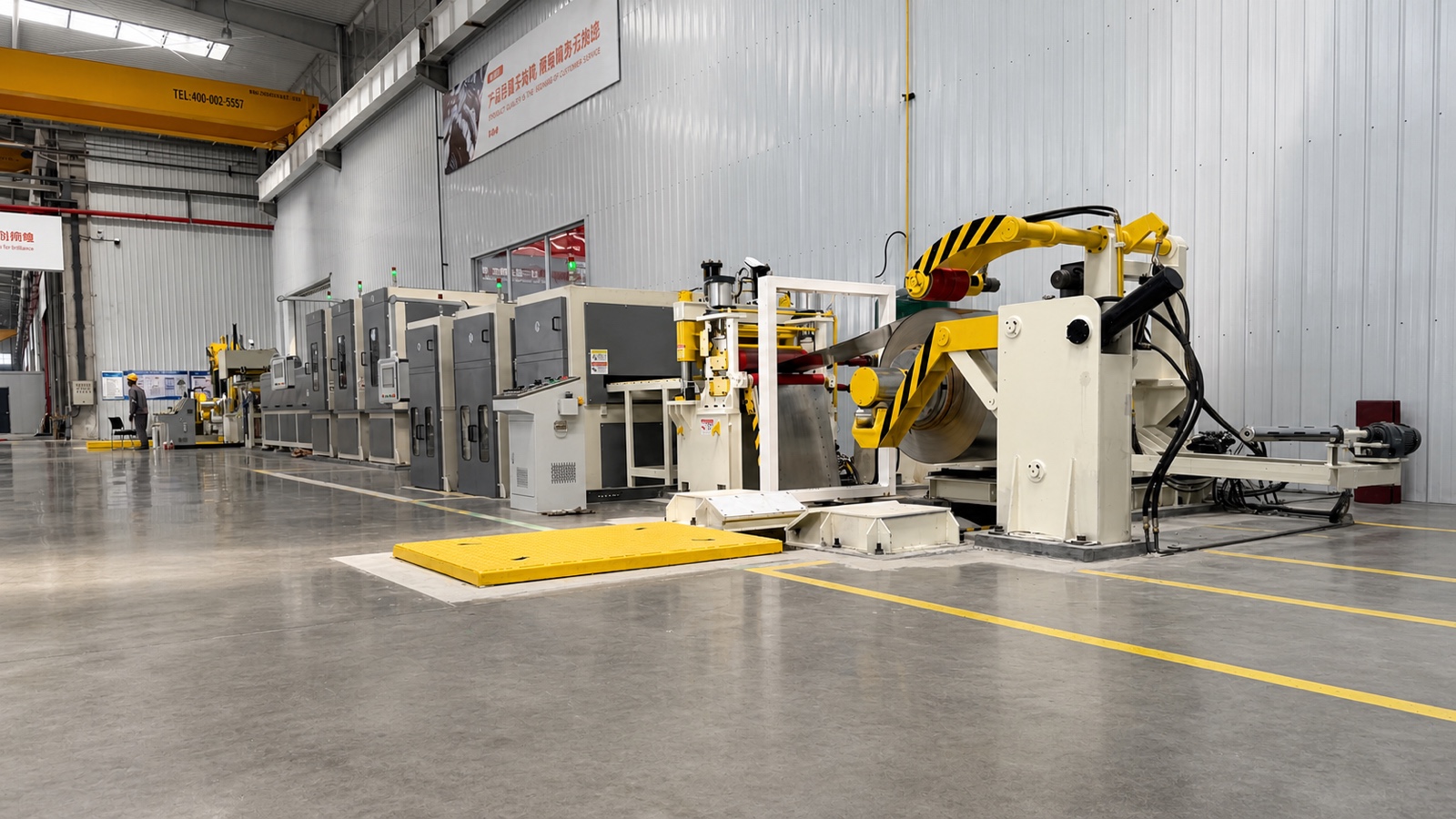

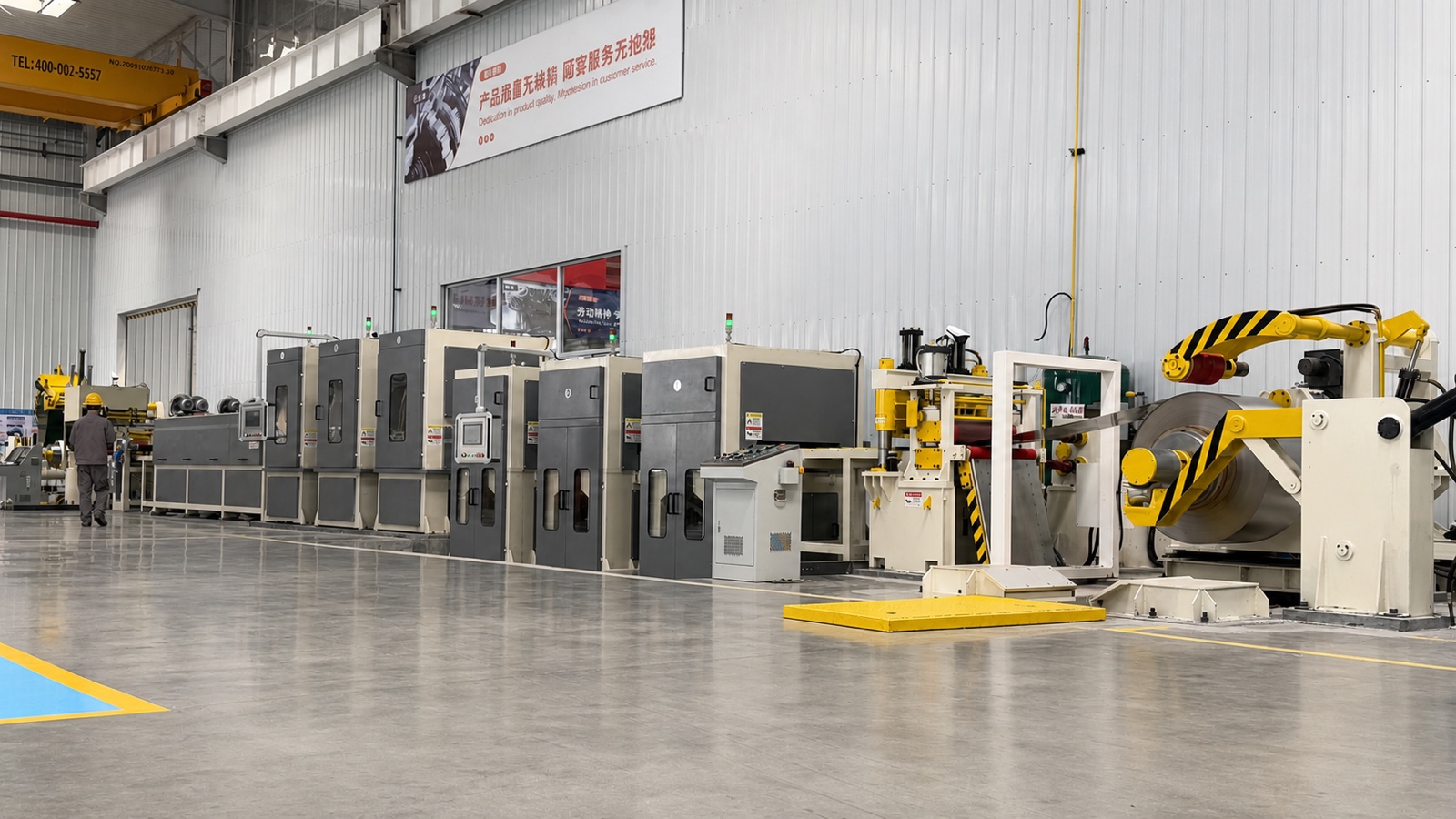

| 11 | Recoiler with EPC and belt wrapper | Recoils the processed strip and supports coil-edge alignment | 1 set |
| 12 | Unloading car | Removes the finished coil from the recoiler | 1 set |
| 13 | Exit hydraulic holding arm | Supports the recoiler mandrel during operation | 1 set |
| 14 | Hydraulic system | Supplies hydraulic functions across the line | 1 set |
| 15 | Pneumatic system | Supplies pneumatic actuators and controls | 1 set |

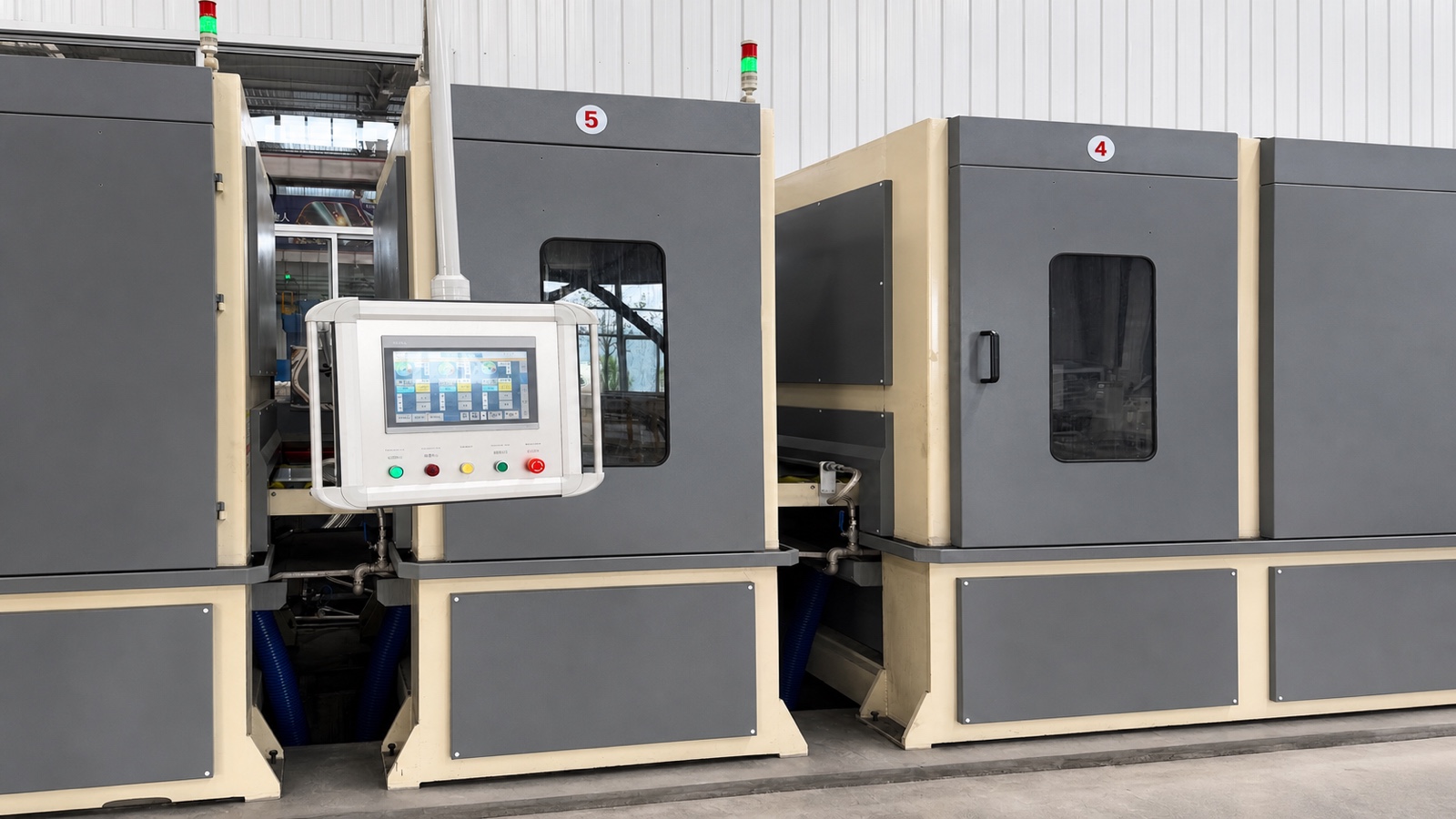

| 16 | PLC and operator-control system | Centralized operation, monitoring, adjustment, and alarms | 1 set |
Working Process
Coil loading → decoiling → CPC alignment → feeding → crop shearing → wet polishing → washing → drying → film coating → EPC recoiling → unloading.
The exact abrasive sequence, belt grit combination, number of passes, and line speed are selected after confirming the incoming material and required surface result.
Available Surface Finishes
- ✔ Titanium No.4 brushed finish (standard production)
- ⚠ Hairline finish (optional, process confirmation required)
- ⚠ Other decorative titanium finishes (customized upon request)
Application Industries
- Titanium decorative sheet production
- Aerospace titanium surface processing
- Chemical industry titanium components
- Architectural metal panels
- Elevator interior decoration
- High-end industrial titanium finishing factories
Optional Configurations
-
Please provide:
Titanium grade (TA1 / TC4 / Nickel alloy), strip width, thickness range, coil weight, coil ID/OD, incoming surface condition, and required No.4 finish sample.Our engineering team will design a custom titanium coil polishing solution based on your production requirements.
.
After-sales Service
GLORY MACHINERY can provide production-line drawings, electrical and hydraulic documentation, installation guidance, commissioning support, and operator and maintenance training according to the final contract. Warranty, response time, site-service scope, travel cost, and spare-parts terms must be confirmed in the commercial agreement for each order.
Call to Action
Send GLORY MACHINERY your titanium grade, strip thickness, coil width, coil weight, incoming surface, required finish, target speed, coil ID/OD, and sample photos. Our engineering team will review the process route and prepare a project-specific technical configuration.
Product Gallery
Technical Specifications
The source document contains several conflicting values. Items marked To Be Confirmed (Verification Required) must be resolved before publication as guaranteed machine specifications or inclusion in a quotation.
Material
| Parameter | Documented Value |
|---|---|
| Raw material | Titanium TA1, titanium TC4, nickel |
| Incoming surface | 2B or BA is stated in the source, but the material reference uses stainless-steel terminology; applicability to titanium is To Be Confirmed (Verification Required) |
Thickness
| Parameter | Value |
|---|---|
| Documented strip thickness | 0.05–2.0 mm |
Width
| Parameter | Value |
|---|---|
| Documented strip width | 300–750 mm |
Coil / Sheet Size
| Parameter | Value |
|---|---|
| Processing format | Coil to coil |
| Maximum incoming coil OD | ≤ Φ1500 mm |
| Recoiler maximum coil OD | Φ1600 mm in the detailed recoiler table; compatibility is To Be Confirmed (Verification Required) |
Coil Weight
| Parameter | Value |
|---|---|
| Documented maximum coil weight | 10 metric tons |
| Unloading-car capacity | 10 T in the parameter table and 15 T in the description; To Be Confirmed (Verification Required) |
Coil ID / OD
| Parameter | Value |
|---|---|
| Incoming coil ID | Φ480–Φ520 mm; a Φ610 mm sleeve is also documented |
| Finished coil ID | Φ508 mm |
| Recoiler expansion range | Φ480–Φ508 mm |
| Incoming coil OD | ≤ Φ1500 mm |
| Finished coil OD | Φ1500 or Φ1600 mm depending on source section; To Be Confirmed (Verification Required) |
Line Speed
| Parameter | Value |
|---|---|
| Line speed | 15 m/min |
| Working speed | 5-60 m/min with stepless regulation |
| Approved website value | To Be Confirmed (Verification Required) because 15 m/min and 60 m/min conflict |
Surface Finish
| Parameter | Value |
|---|---|
| Documented finished surface | No.4 |
| Hairline capability | To Be Confirmed (Verification Required) |
| Abrasive belt | 2620 × 900 mm, grit 120#–240# in the source; final selection depends on finish requirement |
Power
| Parameter | Value |
|---|---|
| Stated total installed power | Approximately 430 kW |
| Polishing section | 155 kW stated |
| Decoiling and recoiling section | 125 kW stated |
| Approved project power | To Be Confirmed (Verification Required), because component-level motor values conflict with the summary |
Voltage
| Parameter | Value |
|---|---|
| Approved electrical supply | 380 V / 50 Hz / 3 Phase |
Machine Configuration
| System | Documented Configuration |
|---|---|
| Polishing arrangement | Wet abrasive-belt heads for both sides; exact quantity conflicts between 3+3 and 3+1 and is To Be Confirmed |
| Entry alignment | CPC system |
| Exit alignment | EPC system with CCD detection |
| Control | Central PLC, HMI touch screen, manual/single-action/automatic modes |
| Cleaning | Brush washing, spray cleaning, and drying |
| Film protection | Double-sided automatic lamination with automatic cutting |
| Hydraulic system | 450 L tank, 12 MPa working pressure, 7.5 kW motor; final configuration To Be Confirmed |
| Pneumatic requirement | 0.7 MPa, 1 m³/min compressed air supplied by customer |
| Operator reference | 1 technician and 2–3 workers stated; staffing depends on plant practice |
| Workshop space | 28 × 8 m, 35 × 9 m with 6 m lifting height, and 23 × 8 m are all stated; final foundation layout is To Be Confirmed |
Customization
The confirmed model is 750 Type with a 380 V / 50 Hz / 3 Phase electrical supply. Machine direction, final polishing-head arrangement, abrasive process, machine color, line layout, and interface conditions require project confirmation. Custom Available applies only after technical review of the customer’s material, coil data, target finish, production requirement, and plant utilities.
Product Features
Professional Selling Points
-
- Continuous Coil-to-Coil Processing
Integrates decoiling, polishing, cleaning, film protection, and recoiling into one documented production flow.
-
- Titanium Material Scope
The technical source identifies TA1 titanium and TC4 titanium, together with nickel, as process materials.
-
- Wet Abrasive-Belt Polishing
Enclosed abrasive-belt stations are configured for wet surface processing; final head quantity requires confirmation.
-
- Two-Side Processing Arrangement
The source documents polishing stations for both strip sides, subject to final confirmation of the top/bottom head combination.
-
- CPC Entry Alignment
The cantilever decoiler includes a CPC system for strip-position control at the entry section.
-
- EPC Recoiling Control
CCD-based EPC detection supports edge-position control during recoiling.
-
- Integrated Washing and Drying
Brush cleaning, water spray, and drying functions follow the polishing section.
-
- Automatic Protective-Film Lamination
A double-sided film laminator with automatic cutting is included in the documented configuration.
-
- Centralized PLC and HMI Operation
The line uses centralized control with parameter setting, status monitoring, operating-mode selection, and fault alarms.
-
- Hydraulic Coil-Handling Support
Loading and unloading cars, cantilever mandrels, and hydraulic support arms are documented for coil transfer and support.
Applications
Suitable Materials
- Titanium TA1.
- Titanium TC4.
- Nickel, as documented in the technical source.
- Other titanium grades or metal alloys: To Be Confirmed (Verification Required) through material and sample review.
Suitable Surface Finishes
- No.4-type brushed finish.
- Hairline finish: To Be Confirmed (Verification Required).
- Finish consistency, roughness, gloss, and color appearance must be evaluated using customer samples and an agreed abrasive process.
Suitable Industries
- Titanium coil processors.
- Titanium decorative sheet and coil manufacturers.
- Metal surface-finishing factories processing the documented material and size range.
- Decorative architectural panel, elevator panel, and related fabrication applications are technically plausible but require customer-sample verification.
Application Notes
The documented range is 300–750 mm in width, 0.05–2.0 mm in thickness, and up to 10 metric tons in coil weight. Final suitability depends on titanium grade, hardness, incoming surface, strip flatness, coil condition, target pattern, abrasive selection, polishing pressure, coolant/filtration arrangement, and required production speed. GLORY MACHINERY should review representative material samples before confirming the process result.
Frequently Asked Questions
What materials can this 750 type line process?
The current technical source lists TA1 titanium, TC4 titanium, and nickel. Other alloys require engineering and sample verification.
What strip width can the line handle?
The documented strip-width range is 300–750 mm.
What is the documented thickness range?
The source states 0.05–2.0 mm. Final capability must be checked against material grade, hardness, flatness, coil condition, and required finish.
What coil weight is supported?
The principal technical tables state a maximum coil weight of 10 metric tons. One unloading-car description states 15 T, so the approved unloading capacity is To Be Confirmed (Verification Required).
What surface finish can the line produce?
A No.4-type finish is documented. Hairline appears in one heading but is not consistently supported by the machine configuration, so hairline capability is To Be Confirmed (Verification Required).
Does the line polish both sides of the strip?
Yes, the source describes top- and bottom-side polishing. However, it gives conflicting head quantities, including 3+3 and 3+1 arrangements. The final number and arrangement of polishing heads must be confirmed.
What is the production speed?
The source states both 15 m/min and 60 m/min. A guaranteed line speed cannot be published until the project configuration and operating conditions are confirmed.
How is strip alignment controlled?
The entry section documents CPC alignment, while the recoiler uses a CCD-based EPC system for edge-position control.
Does the line include cleaning and drying?
Yes. The documented line includes brush washing, spray cleaning, and drying after polishing.
Can protective film be applied after polishing?
Yes. A double-sided automatic film-lamination device with automatic cutting is included in the documented configuration.
What utilities must the buyer prepare?
The buyer is expected to provide the incoming electrical connection, cooling water, compressed air, air compressor, oils, commissioning material, lifting/unloading support, and related workshop infrastructure. The source lists 0.7 MPa and 1 m³/min compressed air. Final interface data must be confirmed in the technical agreement.
What electrical supply is required?
The confirmed electrical supply is 380 V / 50 Hz / 3 Phase.
What workshop space is required?
The source gives conflicting footprints: 28 × 8 m, 35 × 9 m with 6 m lifting height, and 23 × 8 m. GLORY MACHINERY must issue a project-specific general arrangement and foundation drawing before site preparation.
Are installation and operator training available?
The source documents installation guidance, commissioning support, operating and maintenance manuals, and training. The site-service schedule, personnel, travel costs, and commercial terms must be confirmed in the final contract.
What information is needed for a technical proposal?
Please provide material grade, thickness range, strip width, coil ID/OD, maximum coil weight, incoming surface, target finish, required speed, power supply, available workshop area, and representative samples or photographs.
