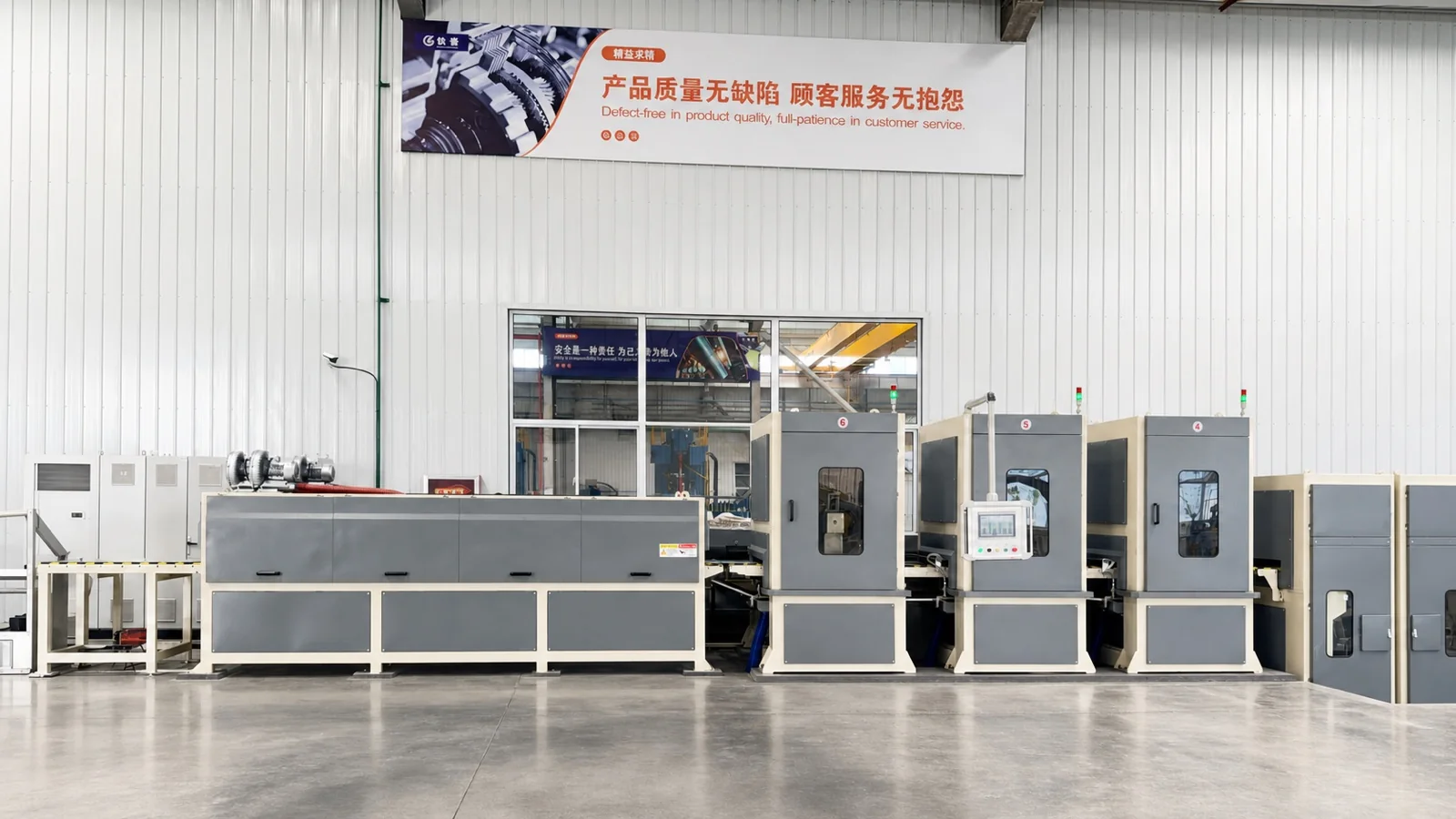

In May 2026, GLORY MACHINERY installed a 750 mm titanium coil-to-coil polishing machine line in Baoji, Shaanxi, China. The project was engineered for continuous titanium coil surface finishing across a strip-thickness range of 0.05–2.0 mm, with a line speed of 60 m/min.

Project at a Glance

Project location	Baoji, Shaanxi, China
Installation date	May 2026
Application	Titanium coil surface finishing
Maximum coil width	750 mm
Strip thickness	0.05–2.0 mm
Line speed	60 m/min
Production format	Continuous coil-to-coil processing

Customer Processing Requirement

The project required a continuous line for processing thin titanium coil while maintaining stable strip transport through the polishing and recoiling stages. The selected 750 Type configuration covers strip from 0.05 mm to 2.0 mm thick and is suitable for applications where coil handling, abrasive-belt finishing, cleaning, protective-film application and recoiling need to be integrated into one production flow.

Integrated Line Configuration

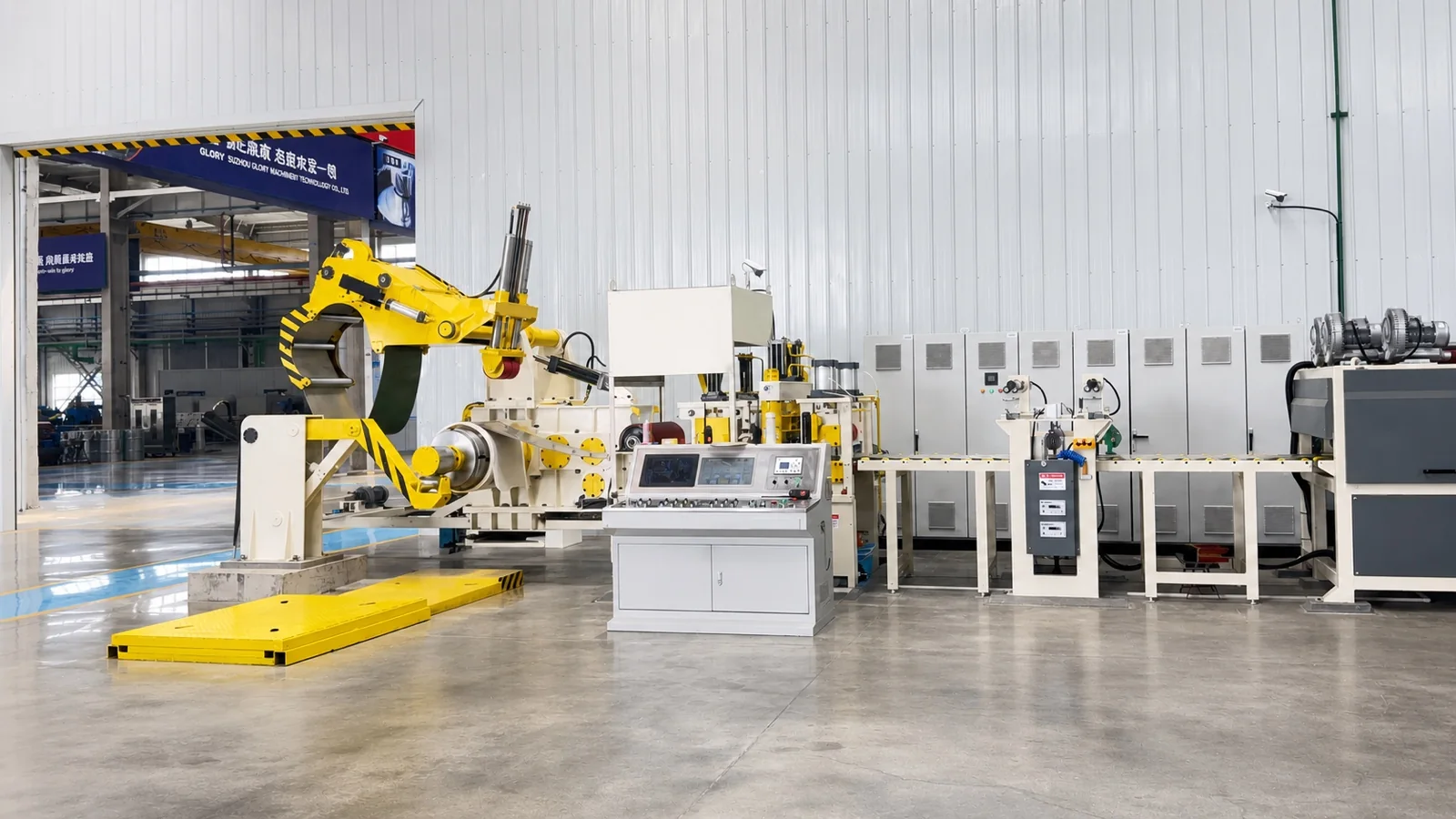

• Hydraulic coil loading and cantilever decoiling
• CPC-assisted entry alignment and strip guiding
• Strip-head feeding, pinch rolls and crop shearing
• Enclosed wet abrasive-belt polishing stations
• Washing and drying after surface finishing
• Automatic protective-film lamination

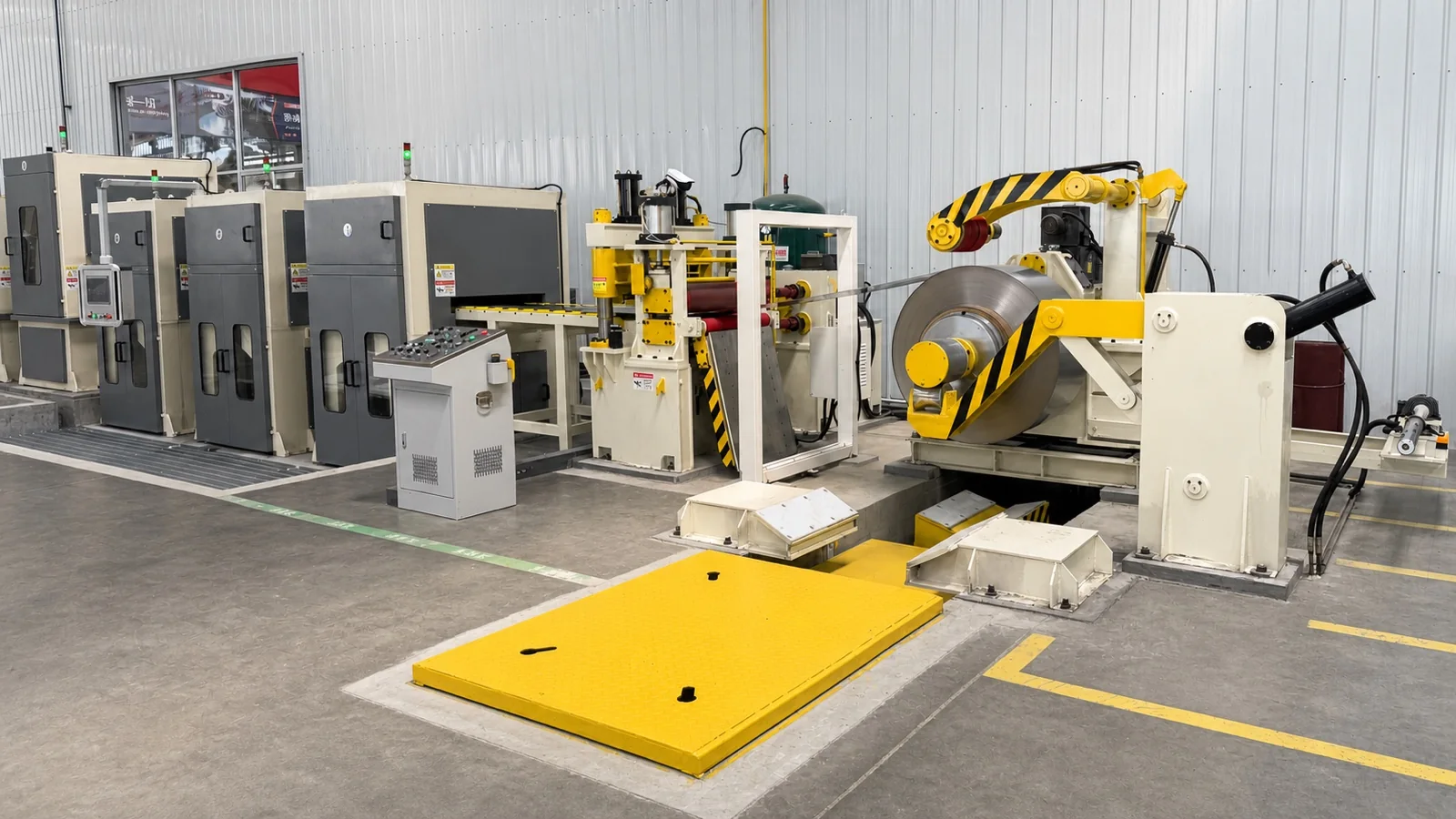

• Exit tension control and EPC-assisted recoiling

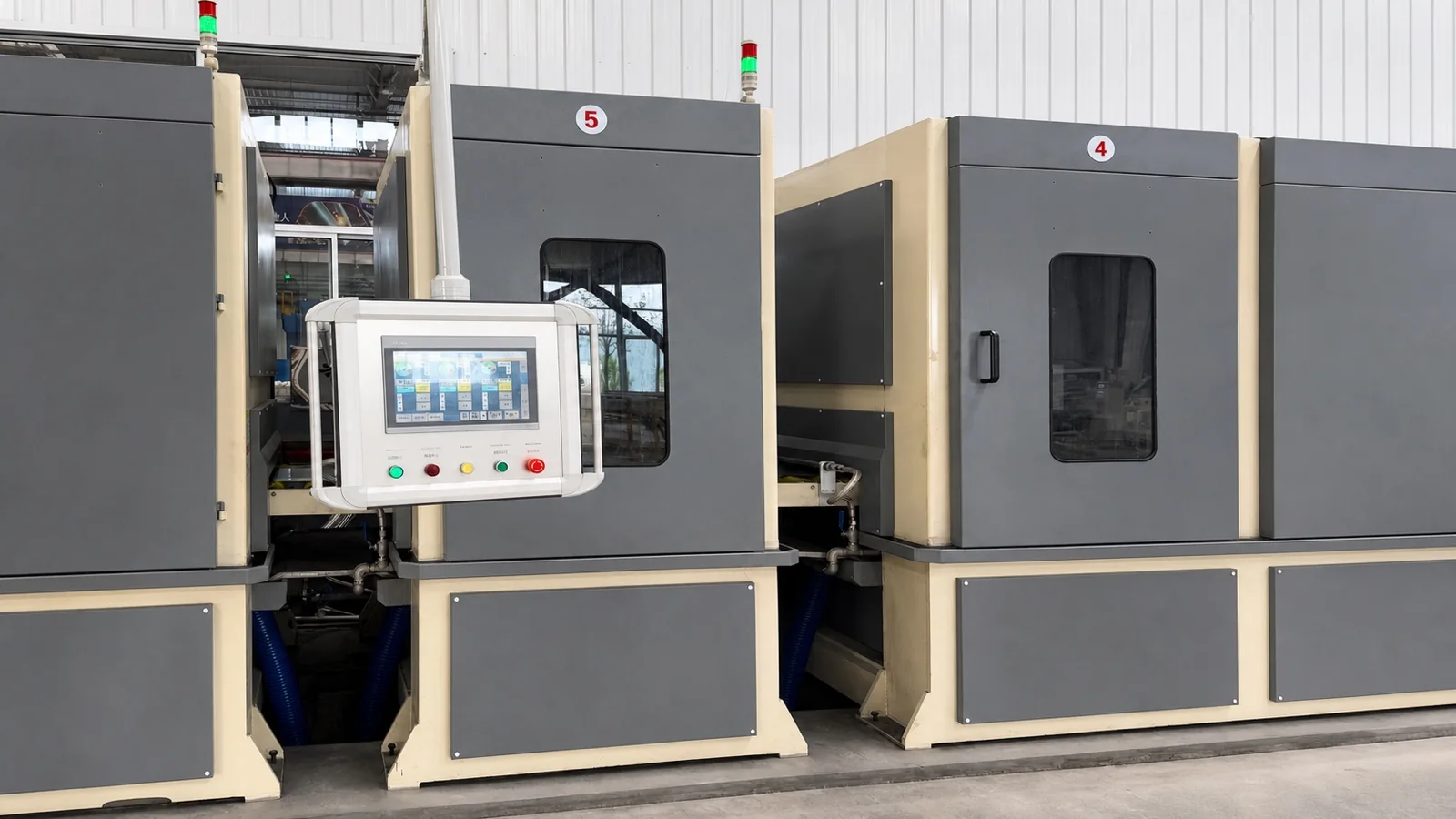

• Central PLC and HMI operation

Engineering Value of the Coil-to-Coil Layout

The coil-to-coil arrangement reduces manual transfer between surface-finishing stages. CPC and EPC alignment support stable strip positioning at the entry and recoiling ends, while the enclosed wet polishing section, downstream washing and drying, and protective-film lamination form a controlled continuous process. Final abrasive selection and polishing parameters should always be confirmed against the customer’s titanium grade, incoming surface and required finish sample.

Project Video

Need a Titanium Coil Surface-Finishing Solution?

For project evaluation, please provide the titanium grade, coil width, strip thickness, coil weight, incoming surface, required finish, target speed, coil ID/OD and sample photos. GLORY MACHINERY will review the process route and prepare a project-specific technical configuration.
