In May 2026, GLORY MACHINERY completed a high-configuration 1300 mm stainless steel coil-to-coil polishing line for Foshan Jindafa Metal Company in Foshan, China. The line is designed for 0.2-1.0 mm thin-gauge stainless steel coil and combines No.4 and hairline surface-finishing processes in one continuous production route.

Project at a Glance

Customer	Foshan Jindafa Metal Company
Installation location	Foshan, Guangdong, China
Project date	May 2026
Material	Stainless steel coil
Strip thickness	0.2-1.0 mm
Finishes	No.4 and hairline
Main finishing configuration	Four No.4 polishing heads, one dedicated hairline machine, and one four-head hairline section
Production format	Continuous coil-to-coil processing

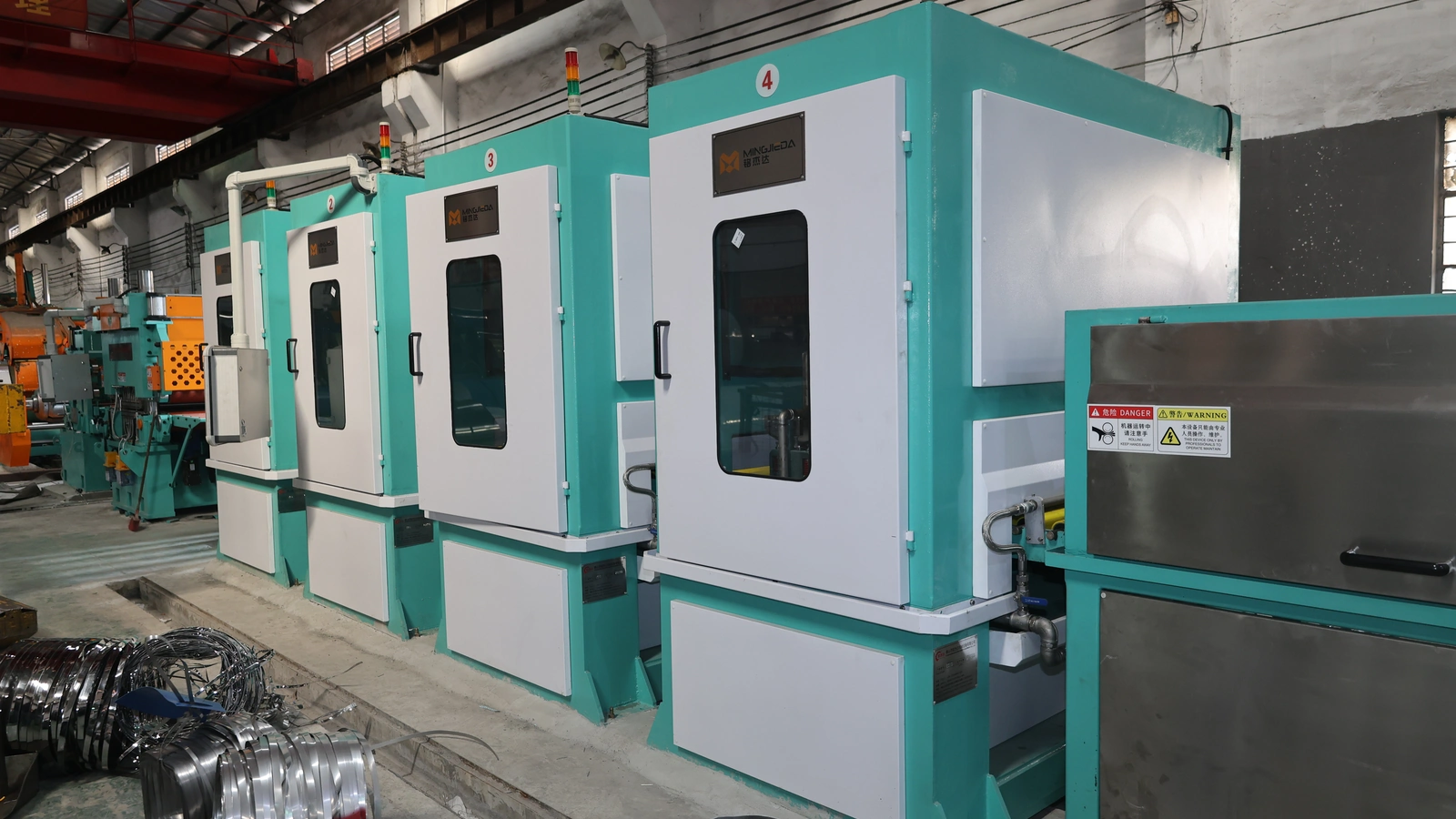

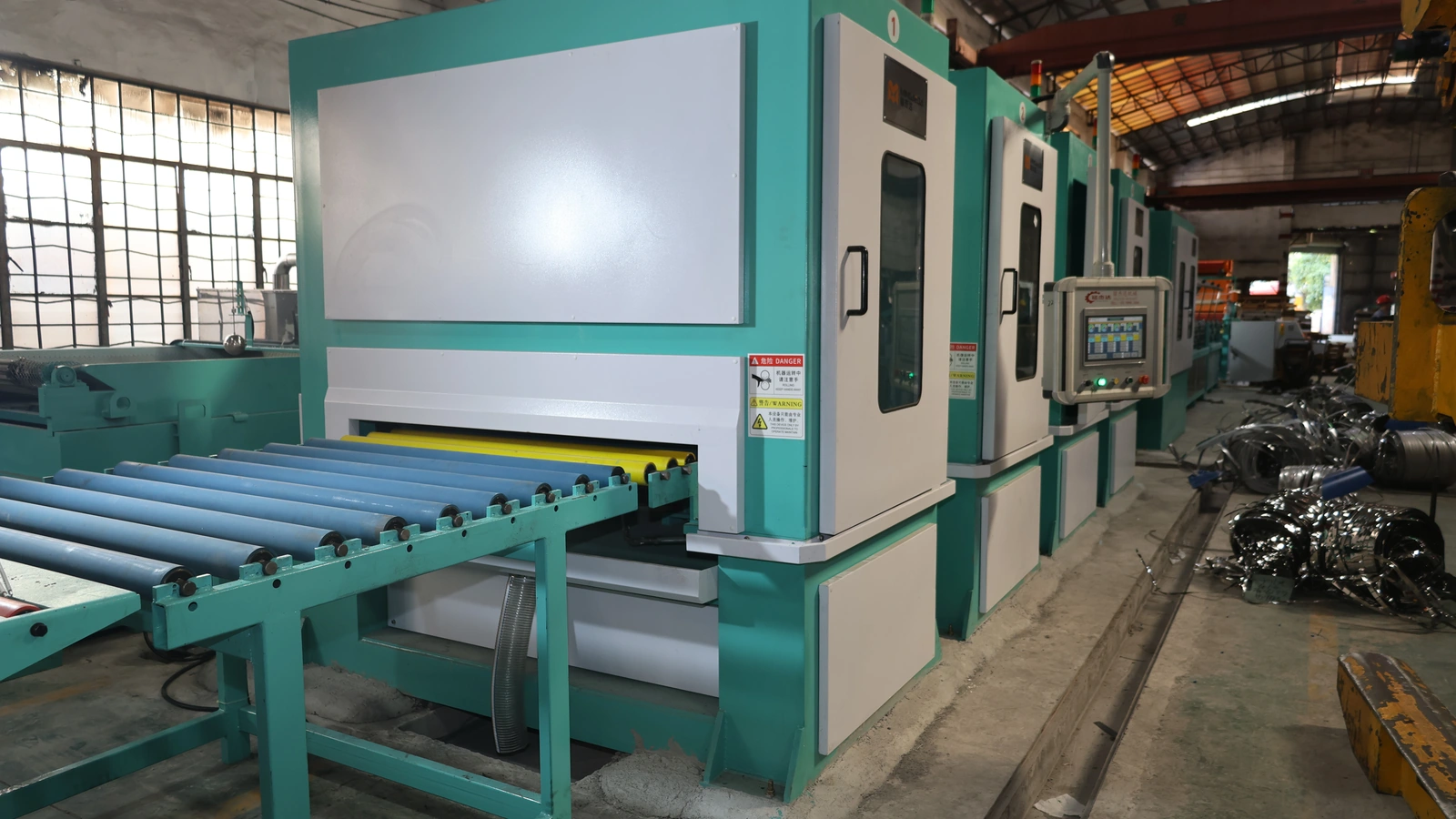

High-Configuration No.4 and Hairline Finishing System

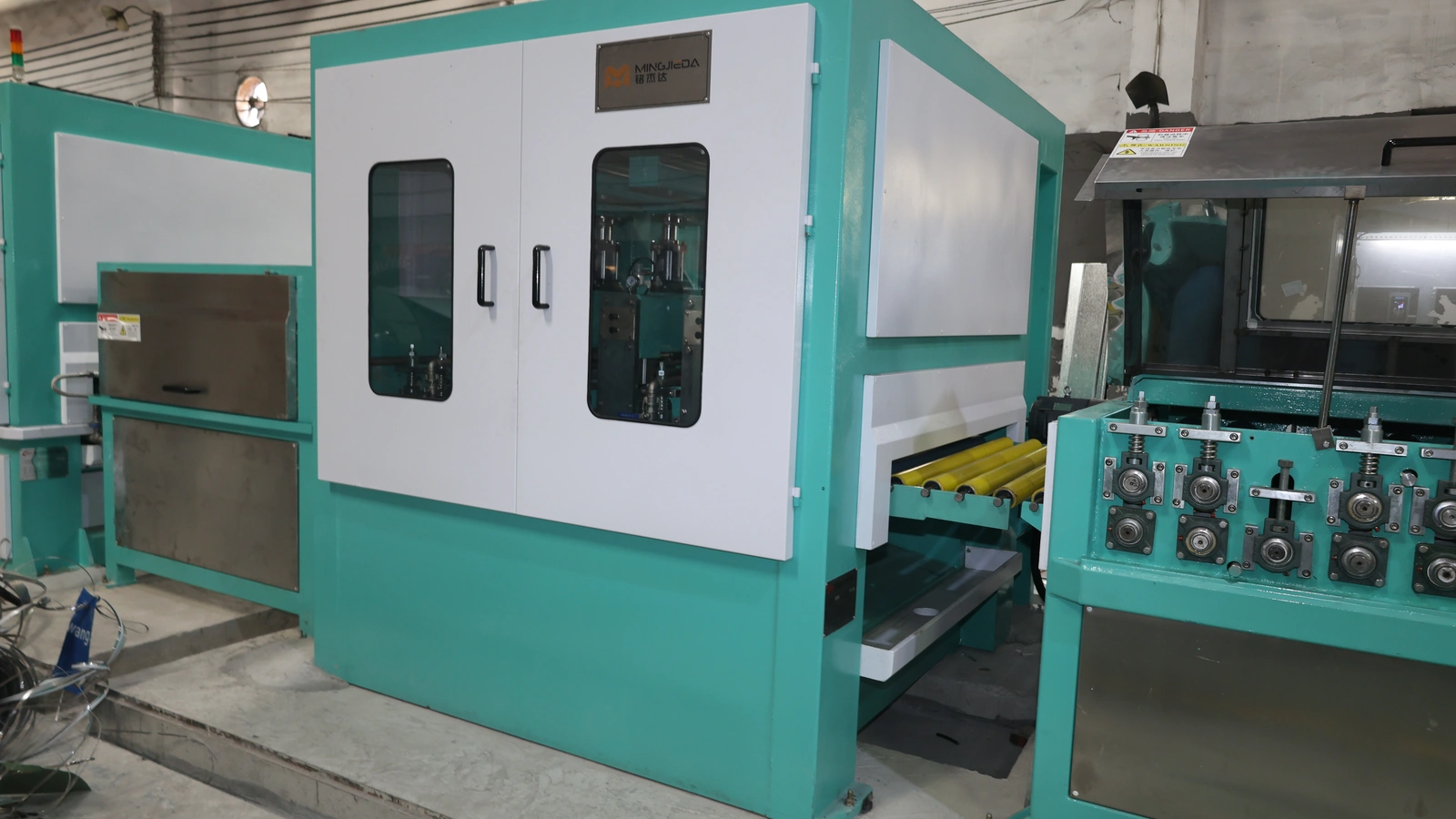

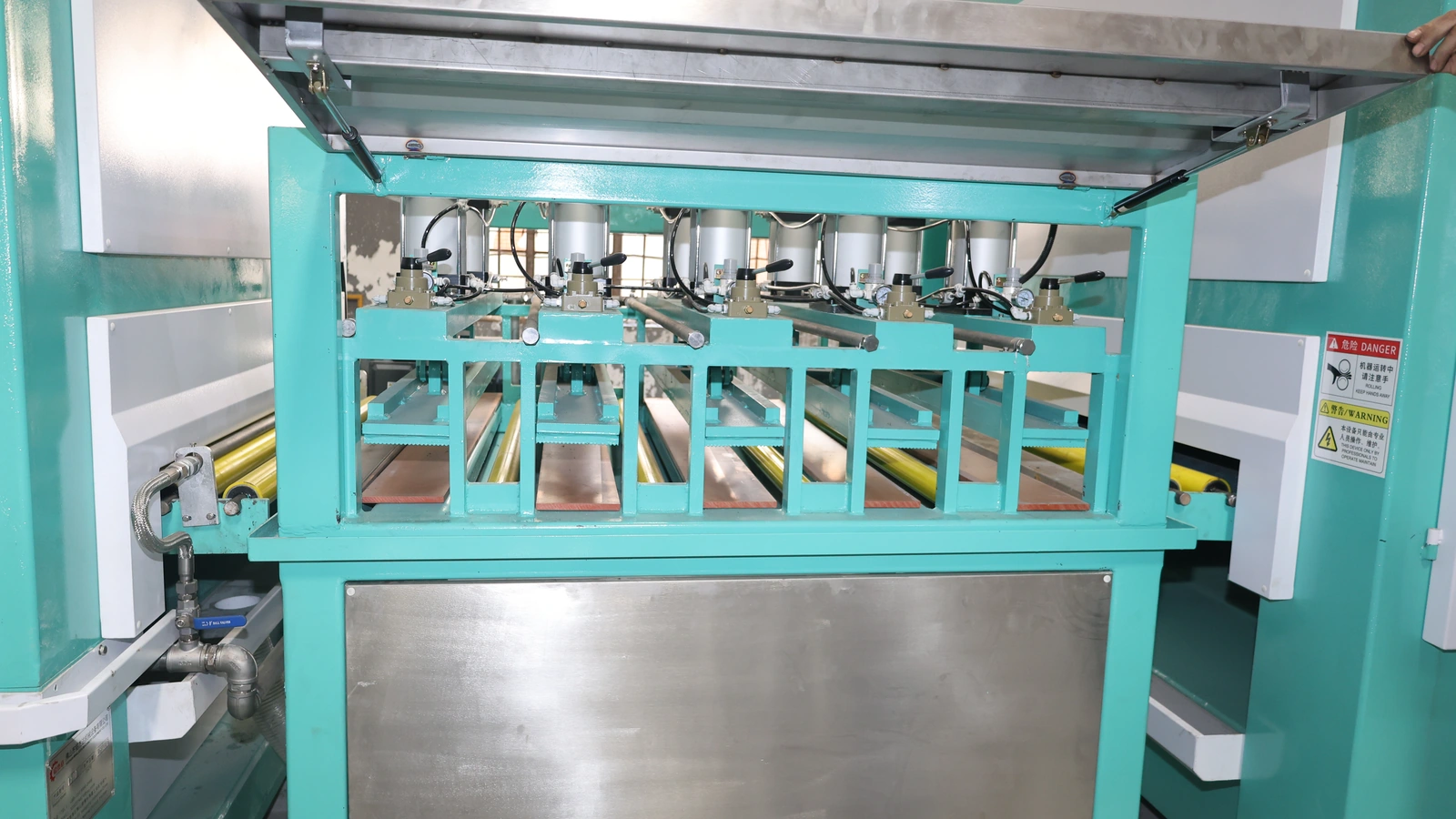

The surface-finishing section uses four enclosed No.4 polishing heads, followed by dedicated hairline-processing equipment. This configuration gives the customer a flexible route for producing No.4 and hairline finishes while maintaining continuous strip transport through the line. Final abrasive selection and process settings depend on the incoming coil surface and the approved finish sample.

Servo Drive and Line Integration

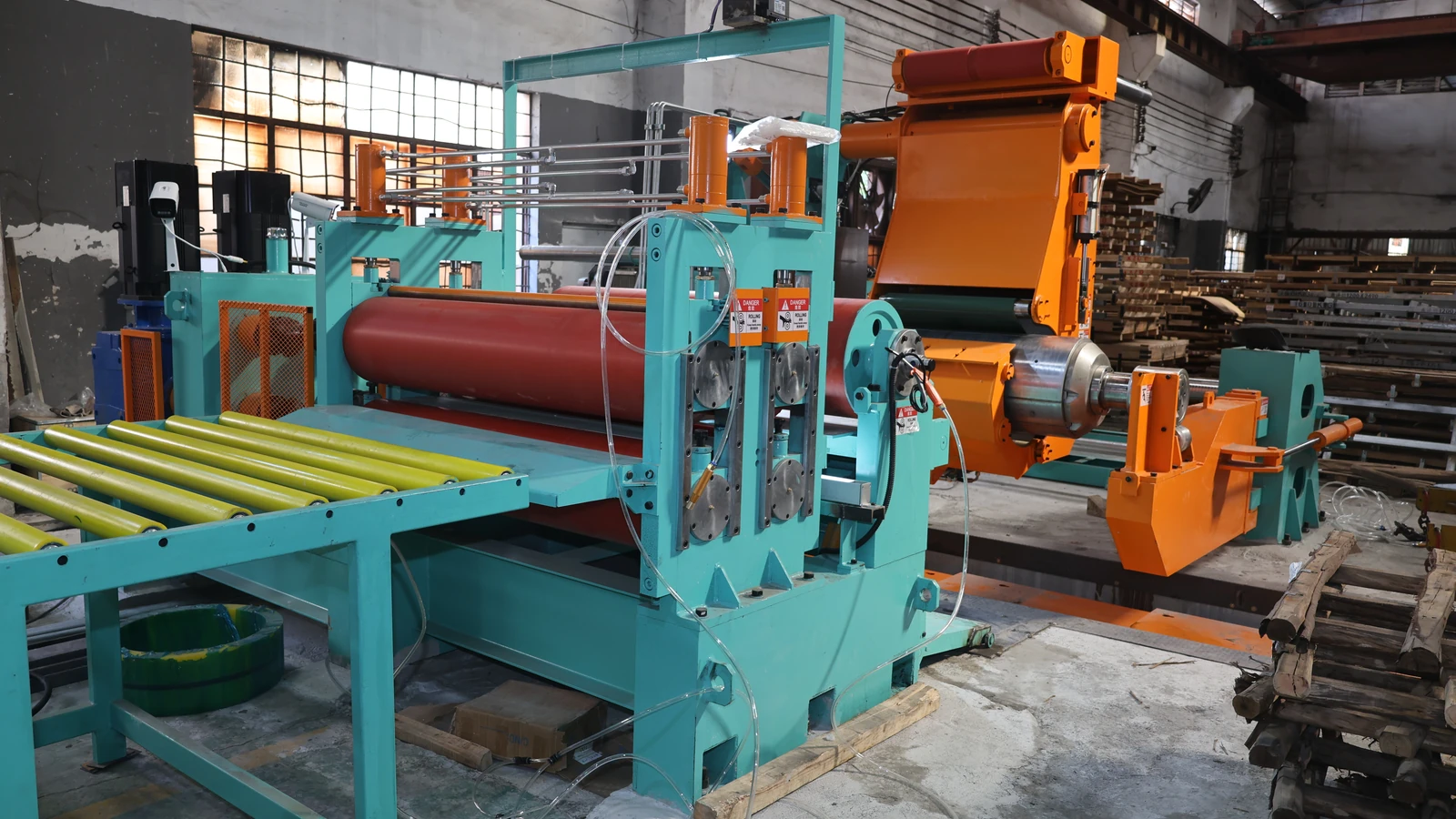

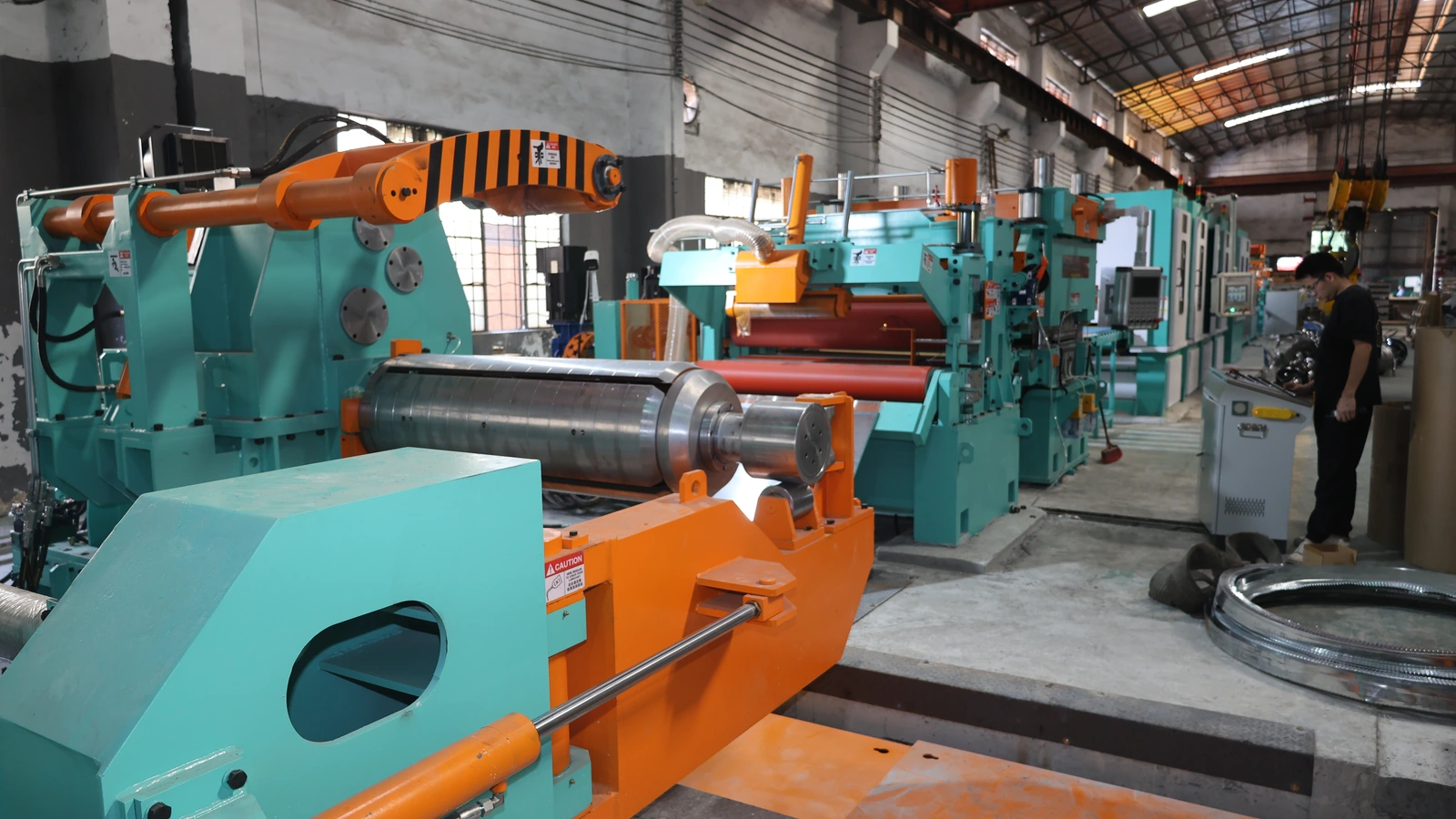

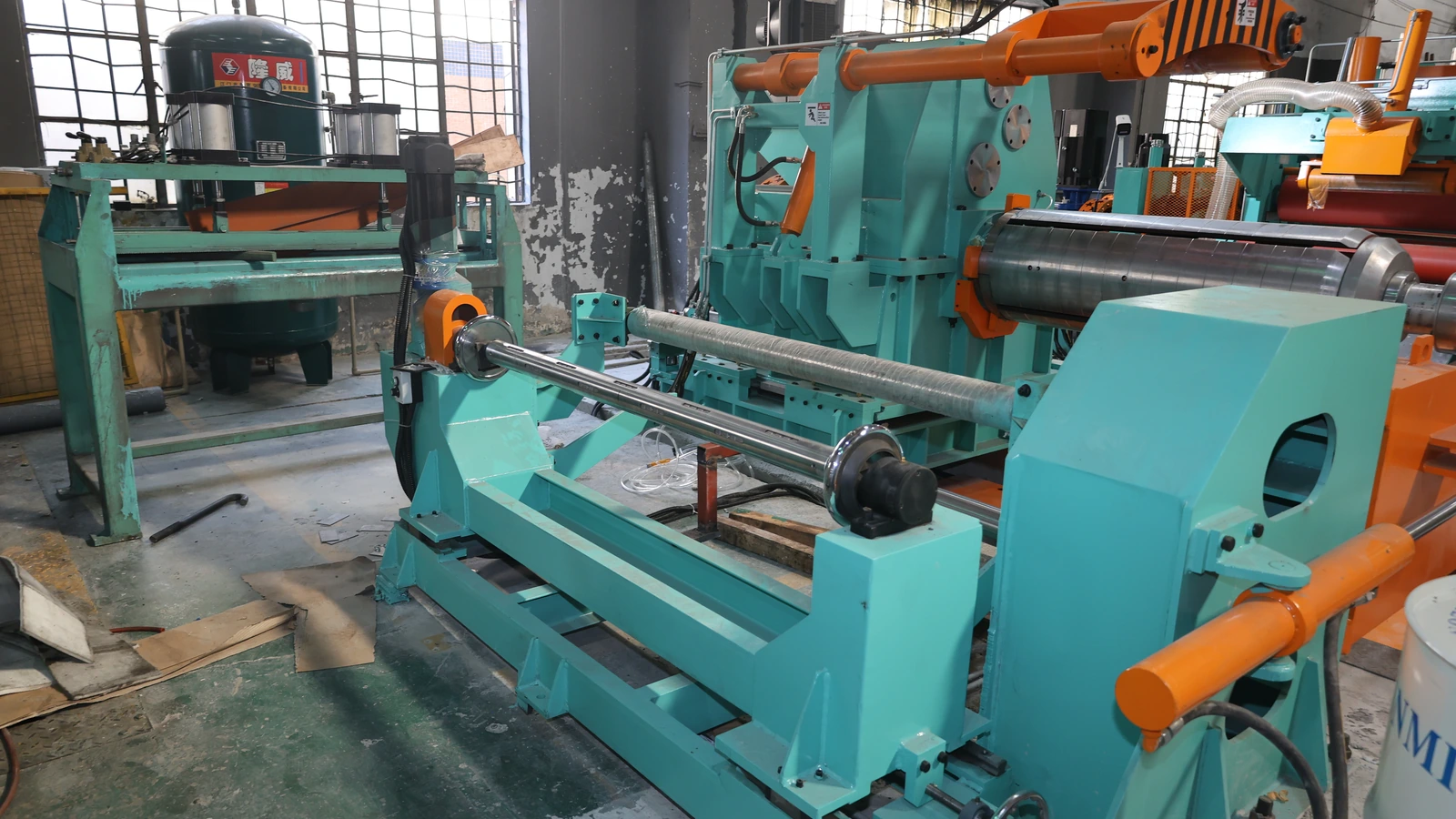

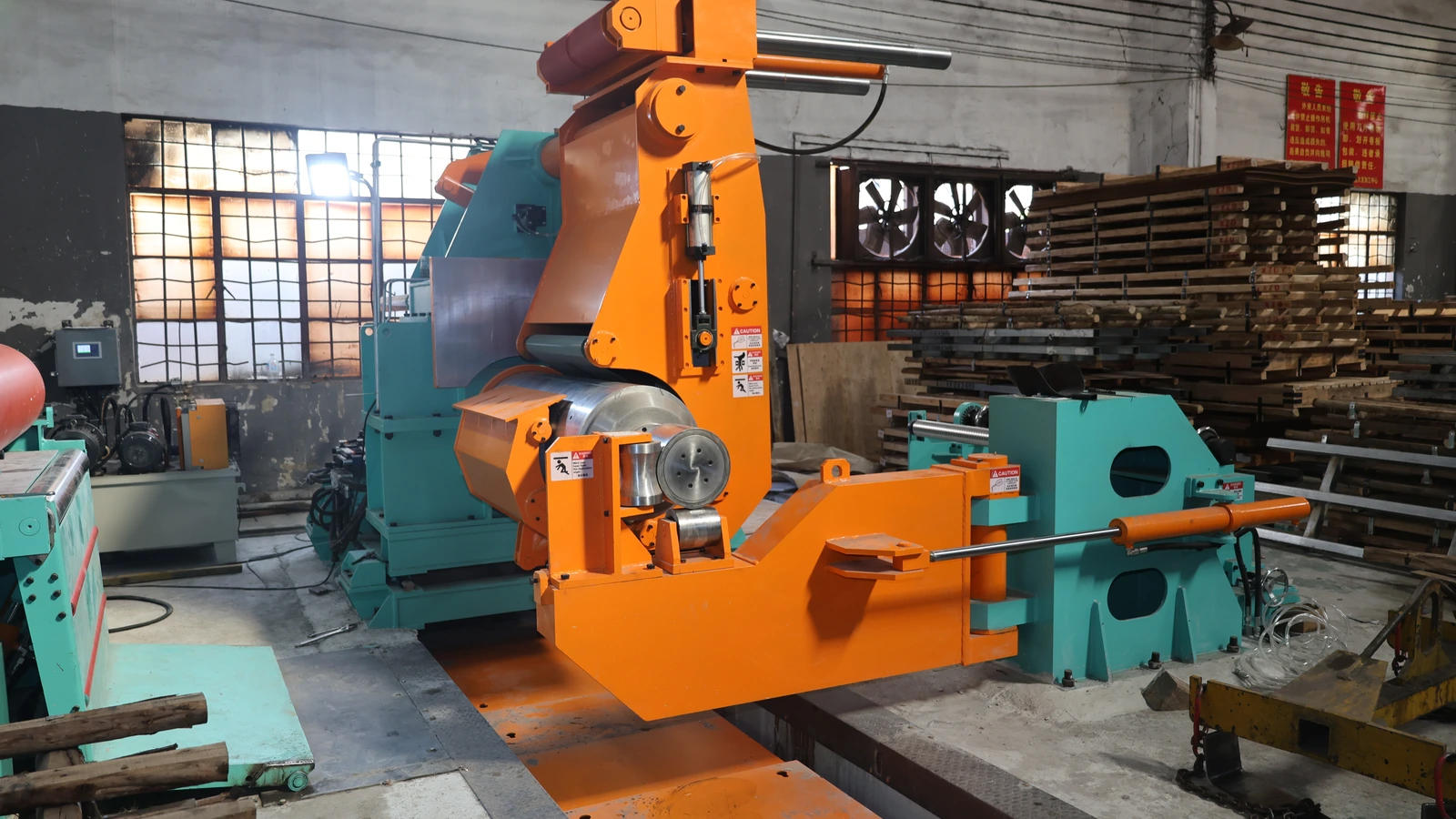

All main working motors use INOVANCE servo motors to support coordinated speed control and responsive adjustment across the operating sections. The decoiling, recoiling and 6-high leveling equipment were integrated with Foshan Texiang Machinery Equipment Co., Ltd. This combination supports stable handling of thin-gauge coil before and after surface finishing.

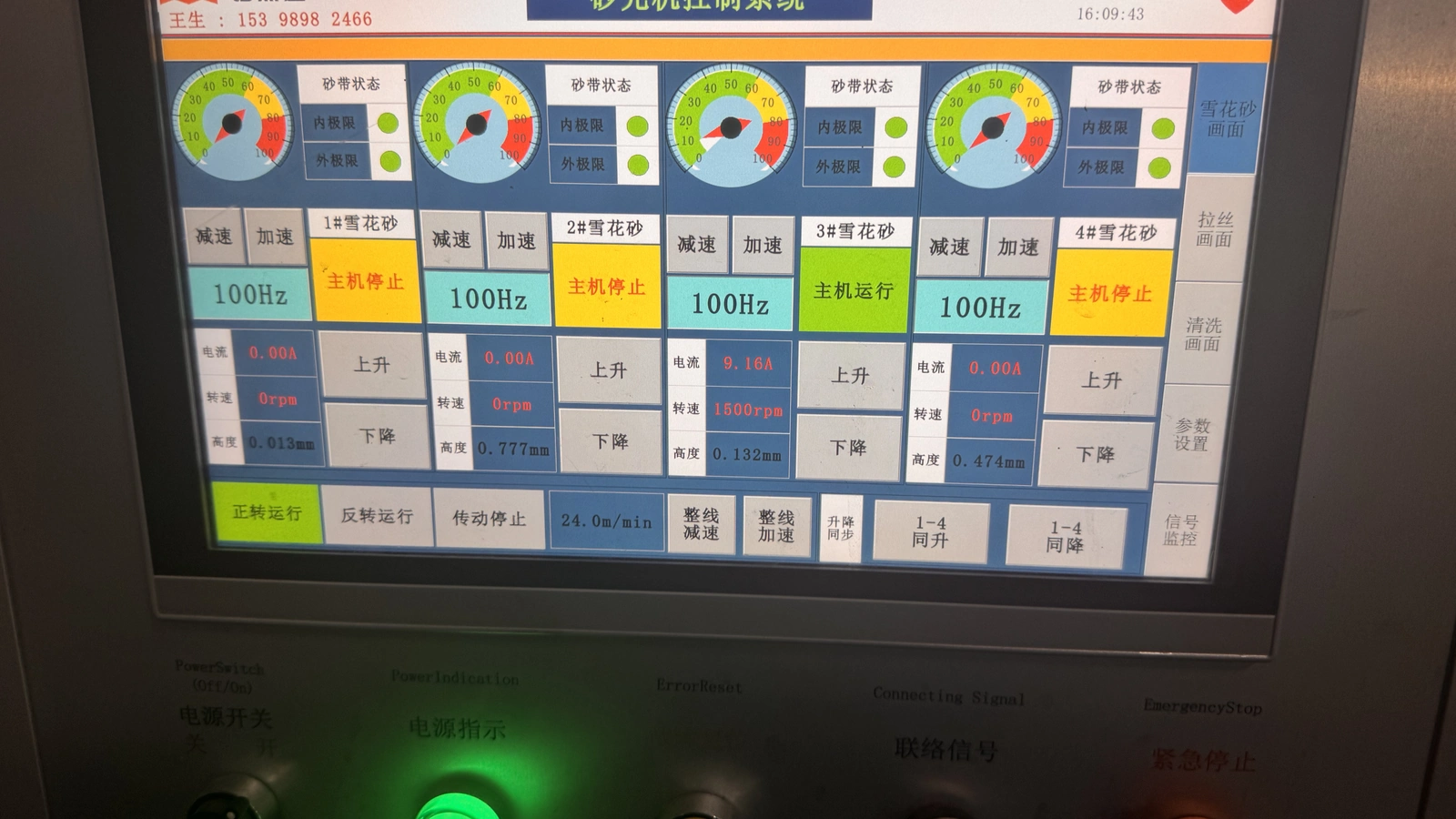

Centralized Polishing Control

The HMI provides centralized monitoring and adjustment for the polishing-head section. Operators can review operating status and coordinate the four No.4 heads from one control interface, supporting repeatable setup during commissioning and production.

Project Significance

According to the project record, this installation was developed as Foshan’s first high-end thin-gauge stainless steel coil polishing line. Its business value lies in combining thin-strip handling, 6-high leveling, multi-head No.4 polishing, hairline finishing and recoiling in one integrated line for local stainless steel coil processing.

Planning a Stainless Steel Coil Finishing Project?

For technical evaluation, please provide the stainless steel grade, coil width, strip thickness, coil weight, incoming surface, target No.4 or hairline sample, required production speed, and coil ID/OD. GLORY MACHINERY will review the process route and prepare a project-specific configuration.
